Barndominium Ideas With Shop: The Complete 2026 Planning Guide

Last updated: May 27, 2026

Quick Answer: A barndominium with a shop combines a steel or post-frame residential structure with an integrated or attached workshop space under one roof. These hybrid buildings are popular with mechanics, woodworkers, farmers, and hobbyists who want to live and work on the same property. Costs typically range from $80 to $200+ per square foot depending on finish level, location, and shop size. Proper zoning research, floor plan design, and insulation planning are the three factors that most determine whether a build succeeds or fails.

Key Takeaways

• Barndominium ideas with shop work best when the living and working zones share structural walls but maintain separate HVAC, insulation, and utility systems.
• Total build costs in 2026 range from roughly $150,000 (basic shell) to $500,000+ (fully finished with a large shop), depending on region and specs.
• Workshop space should be at least 30–40% of the total square footage to be genuinely functional for most trades.
• Zoning classification (agricultural vs. residential vs. mixed-use) is the single most common planning mistake and must be resolved before breaking ground.
• Financing is available but requires lenders familiar with non-traditional construction; USDA loans, portfolio lenders, and construction-to-permanent loans are the most viable options.
• Insulating the shop separately from the living space is critical for both energy efficiency and moisture control.
• Texas, Oklahoma, Tennessee, Missouri, and Montana are among the most permissive and popular states for barndominium builds.
• Mechanics and woodworkers benefit most from 14-foot ceiling heights, 12-foot roll-up doors, and floor drains in the shop section.
• Maintenance responsibilities differ significantly between the residential and shop sections — plan for this in your long-term budget.

What Exactly Is a Barndominium With a Shop?

A barndominium with a shop is a post-frame or steel-frame building that houses both a full residential living space and a dedicated workshop or commercial workspace within the same structure or on the same foundation. The “shop” portion can be a mechanics bay, woodworking studio, fabrication area, agricultural equipment storage, or any trade-specific workspace.

Unlike a house with a detached garage, a barndominium with shop integrates both functions architecturally. The result is a single structure with two distinct zones: one finished to residential code and one built for heavy-duty work. The shared roof, foundation, and exterior walls reduce total construction costs compared to building two separate structures.

Who this is for:

• Small business owners who want to operate from home
• Hobbyists (woodworkers, welders, car restorers) who need serious workspace
• Farmers and ranchers who need equipment storage adjacent to living quarters
• Contractors who want to store tools and vehicles on-site

Who should think carefully before choosing this:

• Anyone in a suburban subdivision with strict HOA rules
• Buyers who plan to resell quickly (appraisal can be inconsistent in some markets)
• Those who need traditional mortgage financing without a specialized lender

How Much Does It Cost to Build a Barndominium With Workshop Space?

Direct answer: In 2026, a barndominium with an attached shop costs between $80 and $200 per square foot for the finished structure, with total project budgets commonly falling between $200,000 and $600,000 for a 2,000–4,000 sq ft combined build. The shop portion typically costs less per square foot than the living area because it requires fewer finishes.

Cost is driven by four main variables: location, finish level, shop size, and site preparation.

Component	Estimated Cost Range
Steel/post-frame shell (per sq ft)	$15–$35
Living area finish-out (per sq ft)	$60–$120
Shop/workshop finish-out (per sq ft)	$20–$50
Site prep (grading, utilities, septic)	$15,000–$60,000
Roll-up garage doors (each)	$1,500–$5,000
HVAC for living area	$8,000–$20,000
Shop climate control (mini-split or unit heater)	$3,000–$10,000
Electrical panel upgrade for shop	$3,000–$8,000

⚠️ Common mistake: Many first-time builders budget only for the shell and living area, then run short when it’s time to finish the shop. Budget the shop separately from day one.

Cost-saving approaches:

• Act as your own general contractor (saves 15–25% but adds significant time)
• Choose a metal building kit from a manufacturer and hire local labor
• Finish the shop first and live in it during the residential build-out (legal in some counties)
• Use polished concrete floors throughout rather than tile or hardwood

Barndominium vs. Traditional Home With Separate Workshop: Pros and Cons

Direct answer: A barndominium with an integrated shop is generally more cost-effective and convenient than a traditional home with a detached workshop, but it comes with trade-offs in resale value, financing ease, and noise/smell management.

Barndominium with shop — advantages:

• Single foundation and roof reduces total construction cost
• Easier to run shared utilities (electrical, plumbing)
• Direct interior access between living and work areas
• Faster to build than two separate structures
• Strong appeal to a specific buyer segment if you ever sell

Barndominium with shop — disadvantages:

• Noise, fumes, and dust can migrate into living space without careful design
• Harder to appraise; some lenders treat it as commercial property
• May not conform to residential zoning in some counties
• Resale pool is smaller than for a traditional home

Traditional home + separate workshop — advantages:

• Easier to finance with conventional mortgages
• Cleaner separation between work and living environments
• Simpler to sell to a broader buyer pool

Traditional home + separate workshop — disadvantages:

• Higher total construction cost (two foundations, two roofs)
• Less convenient — walking outside in bad weather to reach the shop
• Separate utility hookups add cost

Choose a barndominium with shop if: You plan to stay long-term, you work from home regularly, and you want to maximize usable space per dollar spent.

Choose a traditional home + detached shop if: You prioritize easy resale, conventional financing, or strict separation between work smells/noise and your living space.

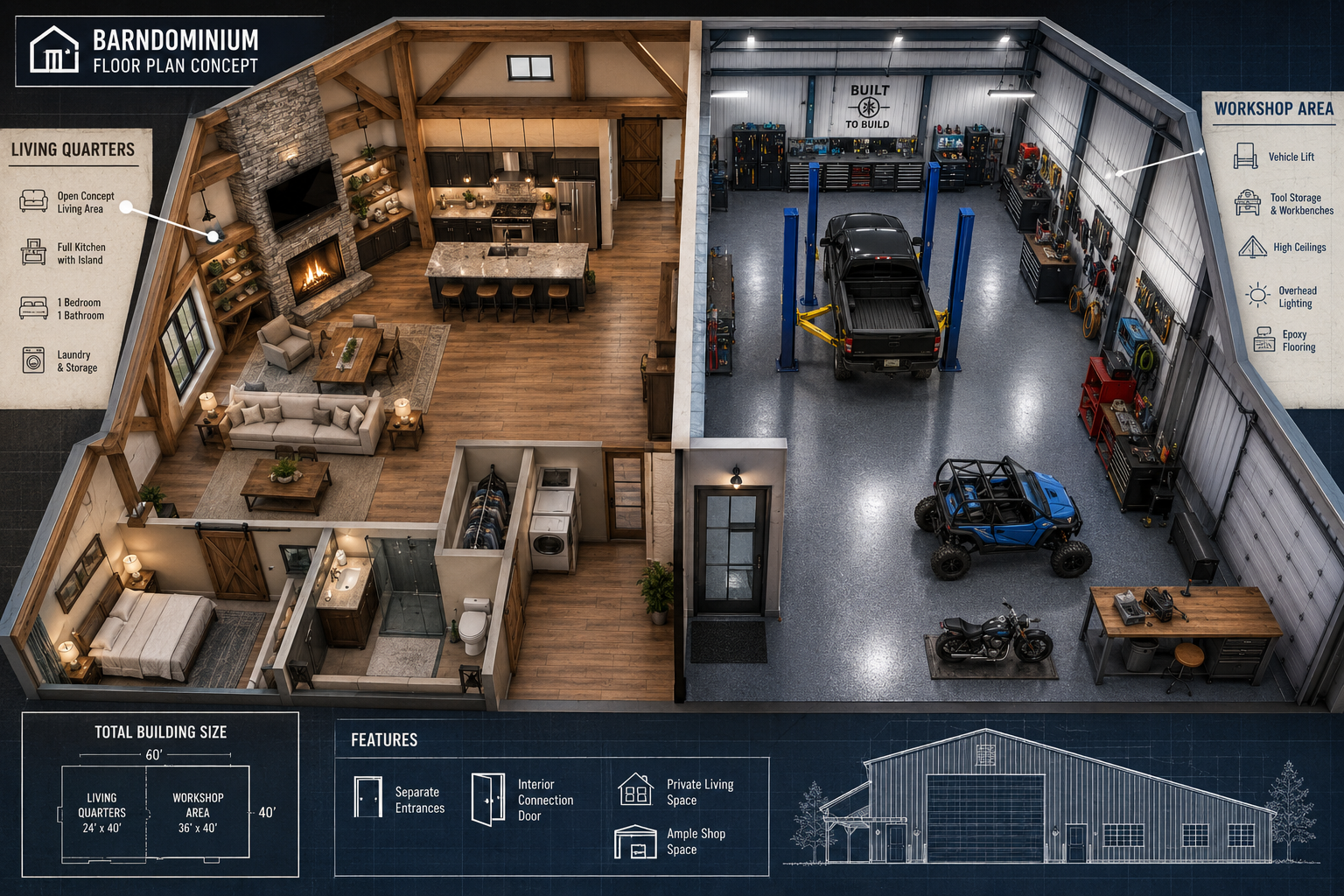

Best Floor Plans for Combining Living Space and Workshop

Direct answer: The most functional barndominium ideas with shop layouts use a side-by-side configuration, placing the living quarters and workshop under the same roofline but separated by a shared firewall. An L-shaped or T-shaped plan works well for larger properties.

Three proven layout approaches:

1. Side-by-side linear plan — Living quarters on one end, shop on the other. A shared utility wall runs between them. This is the most common and easiest to build. Works best on rectangular lots.
2. L-shaped plan — Living area forms one leg of the L, shop forms the other. Creates a natural courtyard or parking area in the corner. Good for properties where the shop needs its own exterior vehicle access.
3. Two-story hybrid — Living space occupies the upper level (loft or full second floor), shop occupies the ground floor. Maximizes land use on smaller lots but adds stair access complexity and structural cost.

Key design rules for any layout:

• Place the shop entrance on a different wall from the main residential entry
• Include a “transition room” (mudroom, utility room, or airlock) between the living area and shop to contain dust and odors
• Run separate electrical panels for the shop and living area from the start
• Position the shop so roll-up doors face away from prevailing winds
• Allow at least 14 feet of interior ceiling height in the shop for lifts, large equipment, or RV storage

What Kind of Zoning Permits Do I Need for a Barndominium With Workshop?

Direct answer: Zoning requirements vary by county and state, but most barndominium builds with a shop require either agricultural zoning (AG), rural residential zoning, or a mixed-use variance. The shop portion may trigger additional commercial or home occupation permits depending on whether you conduct business there.

This is the most commonly underestimated step in the entire process. I’ve spoken with builders who spent months designing a floor plan only to discover their county required a conditional use permit for any structure combining residential and non-residential uses.

Steps to take before designing your floor plan:

1. Contact your county planning and zoning office directly — ask specifically about “post-frame residential with accessory workshop”
2. Determine whether your parcel is zoned AG, rural residential, or something else
3. Ask whether a home occupation permit is required if you operate a business from the shop
4. Check whether the shop square footage triggers any commercial building code requirements
5. Confirm setback requirements for both the residential and shop portions
6. Ask about septic and well requirements if you’re on rural land

💡 Pro tip: In many rural counties, if the shop is less than 49% of the total square footage, the entire structure can be classified as residential. Verify this with your local office — it directly affects your financing options and permit fees.

Can I Get a Barndominium Loan or Financing for the Shop Area?

Direct answer: Yes, financing is available for barndominiums with shops, but it requires lenders who specialize in non-traditional or rural construction. Conventional Fannie Mae/Freddie Mac loans are rarely available for these builds; USDA Rural Development loans, FHA Title I loans, portfolio lenders, and farm credit institutions are the most practical options.

Financing options ranked by accessibility:

Loan Type	Best For	Key Requirement
USDA Rural Development	Rural properties, income-eligible buyers	Property must be in eligible rural area
Farm Credit / AgriLending	Agricultural landowners	Must have agricultural use component
Portfolio lender (local bank/credit union)	Most barndominium builds	Lender keeps loan in-house; more flexible
Construction-to-permanent loan	New builds	Converts to mortgage after completion
Owner-builder loan	DIY builders	Requires documented construction experience

The shop area complicates financing because appraisers may classify it as commercial space, which changes the loan product required. To keep the structure classified as residential:

• Ensure the living area is the primary use (over 50% of total sq ft)
• Do not register a business at the address before closing the loan
• Work with an appraiser who has experience with post-frame residential buildings

How Big Should the Workshop Area Be Compared to Living Quarters?

Direct answer: For most trades and hobbies, a functional workshop should occupy at least 30–40% of the total barndominium footprint. A mechanic working on full-size trucks needs a minimum of 1,200–1,500 sq ft of shop space; a woodworker can often work in 800–1,000 sq ft.

Size guidelines by use:

• Hobbyist/light DIY: 600–800 sq ft shop with 10-ft ceilings
• Woodworking or metalworking: 1,000–1,500 sq ft with 12-ft ceilings
• Automotive/mechanics: 1,200–2,000 sq ft with 14-ft ceilings, floor drain, vehicle lift clearance
• Agricultural equipment storage: 2,000–4,000 sq ft with 16-ft ceilings and wide roll-up doors
• Small commercial operation: 2,000+ sq ft; verify zoning before sizing

A common regret among barndominium owners is building the shop too small. Unlike living space, which can feel adequate at 1,200 sq ft, workshop space fills up faster than expected once equipment, vehicles, and storage are added.

Are Barndominiums Good for Mechanics or Woodworkers?

Direct answer: Barndominiums are exceptionally well-suited for mechanics and woodworkers because the post-frame or steel structure naturally provides wide open spans, high ceilings, and durable floors — all of which are harder and more expensive to achieve in traditional residential construction.

For mechanics specifically:

• Install a 14,000 lb two-post lift (requires minimum 11-ft ceiling clearance)
• Add a floor drain with an oil separator (required by most municipalities)
• Run 240V 50-amp circuits for compressors and welders
• Use epoxy-coated or polished concrete floors for easy cleaning
• Include a parts washer area with dedicated ventilation

For woodworkers specifically:

• Dedicate one wall to a central dust collection system with drop points at each tool station
• Use rubber anti-fatigue mats over concrete in standing work zones
• Install 4,000K–5,000K LED lighting (at least 50 foot-candles at work surface level)
• Plan for a lumber storage area with 16-ft clear span access
• Consider a separate finishing room with filtered ventilation to keep sawdust away from finishes

Both trades benefit from a direct interior door connecting the shop to the living area — so you can grab a coffee, check on dinner, or take a phone call without leaving the property.

Energy Efficiency Tips for Barndominium With Attached Shop

Direct answer: The biggest energy efficiency challenge in barndominium ideas with shop designs is preventing thermal transfer between the conditioned living space and the unconditioned (or differently conditioned) shop. Separate insulation systems and independent HVAC zones are the foundation of an efficient build.

Living area insulation:

• Spray foam insulation on the interior of metal walls (closed-cell, minimum R-13 for walls, R-30 for roof)
• Thermal break between metal framing and interior finish to prevent condensation
• Energy-efficient windows and exterior doors rated for your climate zone

Shop insulation:

• Radiant barrier under the metal roof decking reduces heat gain by 25–35% in hot climates (estimate based on typical radiant barrier performance data from the U.S. Department of Energy)
• Fiberglass batt or rigid foam board on shop walls if climate-controlled
• Insulated roll-up doors (R-value 6.3–17 depending on panel thickness)
• Unit heaters (propane or natural gas) are the most cost-effective shop heat source in cold climates

Shared wall between living and shop:

• Treat this wall as an exterior wall — full insulation, vapor barrier, and air sealing
• A well-insulated shared wall prevents both heat loss and sound transmission

Additional efficiency measures:

• LED high-bay lighting in the shop (reduces electricity use by 50–70% vs. metal halide)
• Mini-split heat pump for shop climate control (more efficient than window units)
• Solar panels on the large south-facing metal roof (barndominiums offer excellent solar real estate)

How to Insulate and Climate Control the Workshop Area

Direct answer: The shop area in a barndominium should be insulated and climate-controlled independently from the living quarters. The most practical approach combines a radiant barrier, wall insulation, insulated doors, and a dedicated heating/cooling unit sized specifically for the shop’s square footage and use pattern.

Step-by-step insulation process for a metal shop:

1. Install a radiant barrier (reflective foil) directly under the metal roof panels before any interior work
2. Frame interior walls with 2×4 or 2×6 studs and fill with R-13 or R-19 fiberglass batts
3. Add a vapor barrier appropriate to your climate (warm-humid climates: vapor barrier on the exterior side; cold climates: interior side)
4. Seal all penetrations (electrical conduit, plumbing, door frames) with spray foam
5. Install insulated roll-up doors — minimum R-6, ideally R-12 or higher
6. Choose a climate control unit: propane unit heater for heat-only needs; mini-split for year-round heating and cooling

⚠️ Edge case: If you plan to spray paint vehicles or use solvent-based finishes in the shop, your HVAC system must be explosion-proof or positioned outside the spray zone. Standard mini-splits are not rated for flammable vapor environments.

Top States Where Barndominium With Shop Designs Are Most Popular

Direct answer: Texas leads the country in barndominium construction by a wide margin, followed by Oklahoma, Tennessee, Missouri, Arkansas, and Montana. These states share common traits: large rural land availability, permissive agricultural zoning, lower land costs, and a cultural acceptance of non-traditional residential builds.

Why these states dominate:

• Texas: No state income tax, large rural parcels, AG zoning widely available, strong builder ecosystem
• Oklahoma: Low land costs, permissive rural zoning, strong ranching culture
• Tennessee: Growing rural population, relatively low construction costs, scenic land
• Missouri: Affordable land in Ozarks region, strong DIY/homestead culture
• Montana: Large acreage properties, agricultural zoning common, growing remote-work population

States where barndominium builds face more friction:

• California, New York, New Jersey: Strict zoning codes, high construction costs, limited rural land
• Many Northeast states: Older building codes not written with post-frame residential in mind

If you’re relocating specifically to build a barndominium with shop, Texas and Oklahoma offer the most developed builder networks, the most experienced lenders, and the most straightforward permitting processes in 2026.

Maintenance Differences Between Residential and Workshop Sections

Direct answer: The residential section of a barndominium requires standard home maintenance (HVAC filters, plumbing, roofing checks), while the workshop section demands more frequent structural inspections, floor maintenance, and door hardware servicing due to heavier use and exposure to chemicals, moisture, and heavy equipment.

Residential section maintenance (annual):

• HVAC filter replacement every 1–3 months
• Inspect roof flashing and sealants around penetrations
• Check windows and doors for air leaks
• Test smoke and CO detectors
• Inspect plumbing under sinks and at water heater

Workshop section maintenance (annual):

• Inspect roll-up door springs, cables, and rollers (these wear faster than residential garage doors)
• Check floor drains for blockages and proper function
• Inspect epoxy or concrete floor for cracks or delamination
• Test electrical panel for any signs of overload or corrosion
• Check ventilation fans and exhaust systems for debris
• Inspect the shared wall between living and shop for moisture intrusion or pest entry points

Metal building exterior (both sections):

• Inspect metal panels for rust at fastener points every 2–3 years
• Re-caulk around doors, windows, and roof penetrations as needed
• Check gutters and downspouts after major storms

The shop section will generally cost more to maintain per square foot than the living area because of the mechanical wear on doors, floors, and electrical systems.

Common Mistakes When Designing a Barndominium With Workspace

Direct answer: The most damaging mistakes in barndominium ideas with shop projects happen at the planning stage, not during construction. Skipping zoning research, underestimating shop size, and failing to separate utilities between the two zones account for the majority of costly mid-build corrections.

Top mistakes to avoid:

1. Skipping zoning research — Assuming rural land is automatically AG-zoned. Always verify before purchasing land.
2. Building the shop too small — A 20×30 shop sounds large until you park one truck and add a workbench.
3. Sharing a single electrical panel — The shop needs its own 200-amp panel to handle compressors, welders, and lifts without tripping breakers in the living area.
4. No transition space — Connecting the shop directly to the kitchen or living room without a mudroom or airlock allows dust, fumes, and noise to migrate freely.
5. Ignoring drainage — A shop floor without a drain is a significant inconvenience for any wet work, washing, or spill cleanup.
6. Choosing the wrong insulation system — Using fiberglass batts without a vapor barrier on metal walls leads to condensation and mold within 2–3 years.
7. Not planning for future expansion — Building the shop at maximum budget now, with no room to add a lean-to or additional bay later.

Frequently Asked Questions

Q: Can a barndominium with a shop be financed like a regular home?
A: Not usually with conventional loans. Most barndominium builds require portfolio lenders, USDA Rural Development loans, or farm credit institutions. The shop area can complicate appraisals, so work with a lender experienced in post-frame residential construction before finalizing your plans.

Q: How long does it take to build a barndominium with a shop?
A: Most builds take 6–18 months from permit approval to move-in. The steel or post-frame shell goes up quickly (often 2–4 weeks), but finish-out of the living area and shop electrical/plumbing work takes the majority of the timeline.

Q: Do I need separate permits for the living area and the shop?
A: In most jurisdictions, yes. The residential portion requires a residential building permit; the shop may require a separate accessory structure or commercial permit depending on its size and intended use. Confirm with your county building department.

Q: What ceiling height is best for a barndominium shop?
A: 14 feet is the practical minimum for most mechanics and fabricators. If you plan to store RVs, large farm equipment, or use a two-post lift with tall trucks, 16 feet is strongly recommended.

Q: Can I run a business from my barndominium shop?
A: Often yes, but you may need a home occupation permit or a separate business license. Some counties restrict commercial traffic (customer vehicles) in residential or agricultural zones. Check local regulations before advertising your business address.

Q: Is a barndominium with a shop a good investment?
A: It depends on your market. In rural Texas, Oklahoma, and Tennessee, these properties have strong buyer demand. In suburban or urban markets, the resale pool is smaller. If you plan to stay long-term, the cost-per-square-foot value is excellent.

Q: What’s the best flooring for a barndominium shop?
A: Polished or epoxy-coated concrete is the standard choice. It’s durable, easy to clean, chemical-resistant, and relatively inexpensive. For comfort during long standing work, add anti-fatigue rubber mats at fixed workstations.

Q: How do I prevent shop smells from entering the living area?
A: Install a solid-core door with weatherstripping between the shop and living area, maintain negative pressure in the shop using exhaust fans, and include a mudroom or airlock as a buffer zone.

Q: Are barndominiums energy efficient?
A: They can be, but it requires intentional design. Spray foam insulation, radiant barriers, insulated doors, and separate HVAC zones for the living and shop areas are the key factors. A poorly insulated metal building is one of the least efficient structures you can build.

Q: What size roll-up door do I need for a barndominium shop?
A: For standard vehicles and equipment: a 10×10 door. For full-size trucks and SUVs: 12×12. For RVs or large farm equipment: 14×14 or 16×16. Order doors before framing the openings to ensure the rough opening matches the door size.

Q: Can I add a shop to an existing barndominium?
A: Yes. A lean-to addition or attached bay can often be added to an existing post-frame structure. You’ll need a permit, and the existing foundation and framing must be evaluated for load capacity. This is generally more cost-effective than building a separate detached shop.

Q: What’s the difference between a barndominium and a shouse?
A: The terms are often used interchangeably. “Shouse” (shop + house) emphasizes the workshop function more explicitly, while “barndominium” has a broader meaning that includes agricultural aesthetics. Functionally, they describe the same building concept.

Conclusion

Barndominium ideas with shop configurations represent one of the most practical and cost-effective ways to combine residential living with a serious workspace on a single property. The key to a successful build is treating the planning phase with the same rigor as the construction phase.

Your actionable next steps:

1. Research zoning first — Contact your county planning office before purchasing land or hiring a designer.
2. Size the shop honestly — Think about your largest piece of equipment, add 30%, and use that as your minimum shop footprint.
3. Find a specialized lender — Start conversations with USDA-approved lenders, farm credit institutions, or local portfolio lenders before you need the money.
4. Hire a designer with barndominium experience — Generic residential architects often underestimate the structural and utility requirements of an integrated shop.
5. Separate your utilities from day one — Independent electrical panels, HVAC zones, and insulation systems for the living and shop areas will save you money and frustration for decades.
6. Build in a transition room — A mudroom or airlock between the shop and living area is the single highest-value design feature you can add for under $5,000.

A well-designed barndominium with shop is a property you can genuinely live and work in for decades. The upfront planning investment pays off every single day you walk from your kitchen into your shop without stepping outside.

References

• U.S. Department of Energy. (2023). Radiant Barriers: A Do-It-Yourself Guide for Homeowners. energy.gov
• USDA Rural Development. (2024). Single Family Housing Guaranteed Loan Program. rd.usda.gov
• National Frame Building Association. (2022). Post-Frame Building Design Manual. nfba.org
• Farm Credit Services of America. (2023). Rural Home Loan Options. fcsamerica.com

Meta Title: Barndominium Ideas With Shop: The Complete 2026 Guide

Meta Description: Explore the best barndominium ideas with shop layouts, costs, zoning tips, and financing options in 2026. Build smarter with this complete planning guide.
