Quick Answer

A metal building floor plan defines the layout, dimensions, and structural zones of a steel-framed structure, whether it’s a garage, workshop, home, barn, or commercial warehouse. Standard sizes range from 20×20 ft for small garages to 200×300 ft for large industrial facilities. Costs vary widely, from roughly $10 to $25 per square foot for the steel kit alone, up to $40–$100+ per square foot for a fully finished, permitted structure depending on location, complexity, and finish level.

Key Takeaways

• Metal buildings come in standard widths (20 ft to 200+ ft) and can be customized in nearly any length, making floor plan flexibility a core advantage.
• Steel frame construction typically costs less per square foot than wood for large spans, but wood may be more economical for small residential projects.
• The most common mistakes in metal building design are underestimating clearance heights, ignoring local wind and snow load codes, and failing to plan for insulation from the start.
• Open-span floor plans (no interior columns) work best for workshops, warehouses, and arenas; closed or multi-span plans suit offices, homes, and mixed-use buildings.
• Foundation choice (concrete slab, perimeter wall, or pier system) depends on soil conditions, building use, and local code requirements.
• Moisture control requires a combination of vapor barriers, proper ventilation, and appropriate insulation — not just one solution alone.
• Agricultural metal buildings often qualify for different permitting pathways than commercial or residential structures, which can reduce cost and timeline.
• Always verify local building codes, zoning rules, and HOA restrictions before finalizing any metal building floor plan.

What Are the Standard Sizes for Metal Building Floor Plans?

Metal building floor plans follow standard width increments — typically 20, 24, 30, 40, 50, 60, 80, 100, and 120 feet wide — with length customizable in 5-foot increments. This modular sizing system is one of the biggest practical advantages of steel construction.

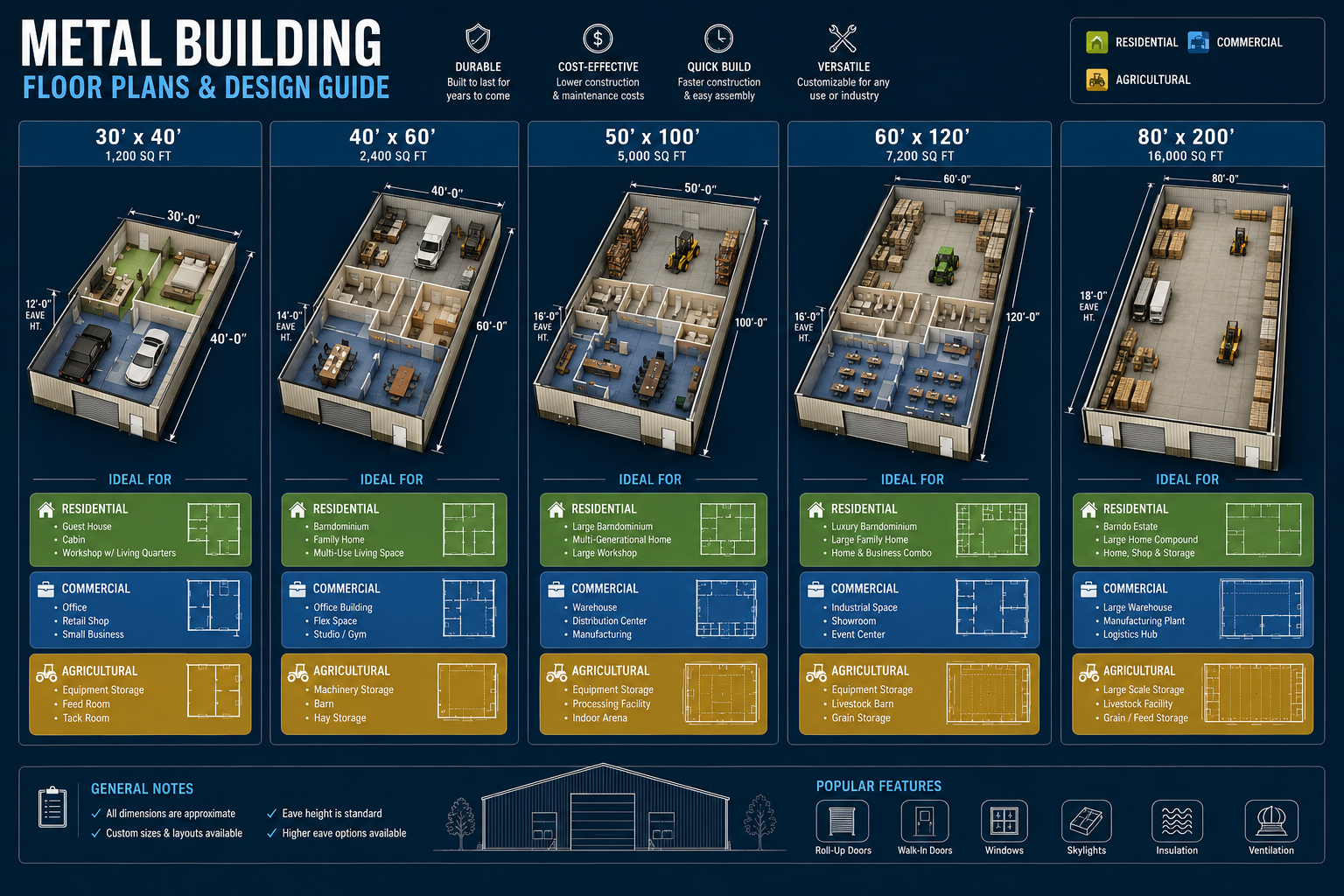

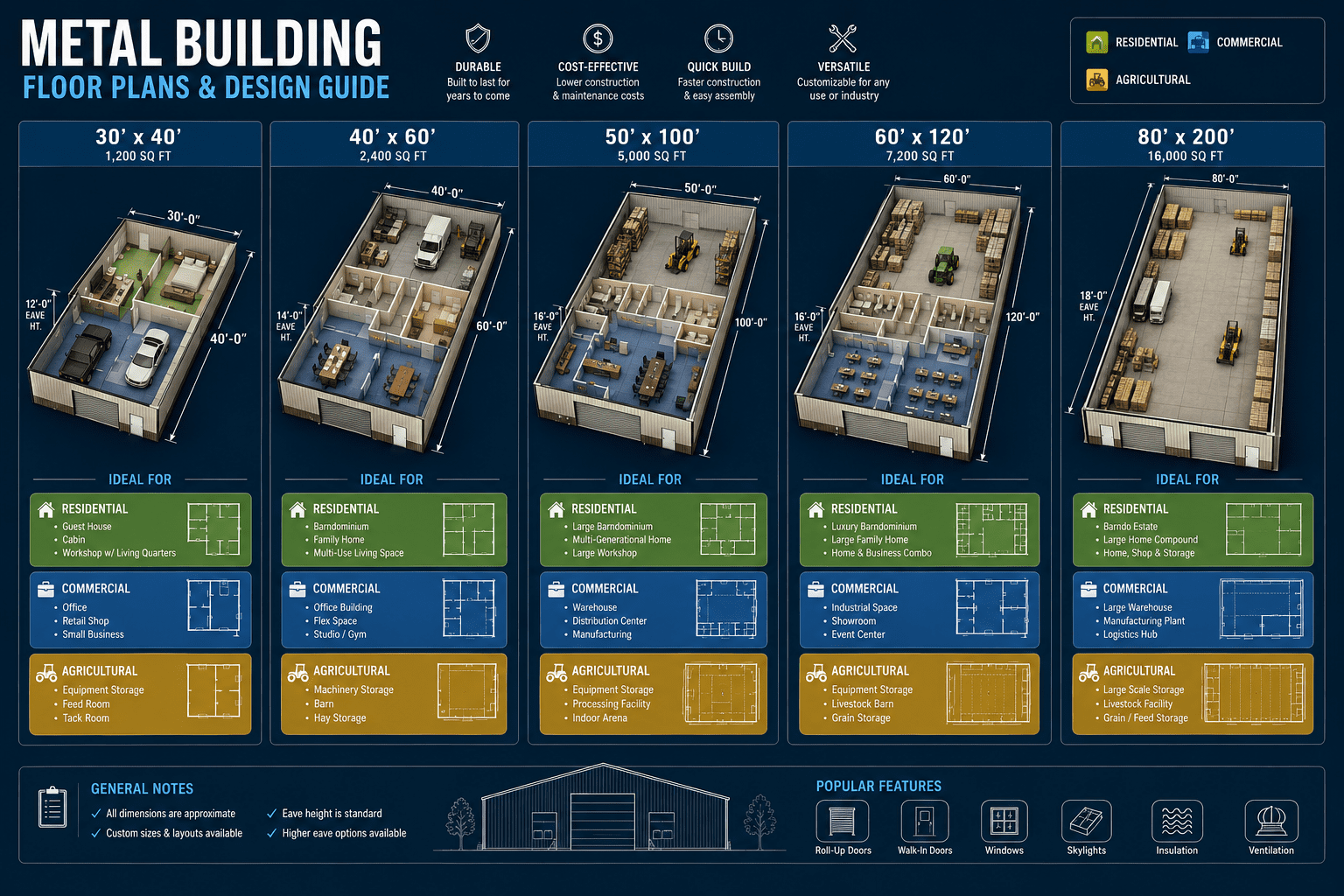

Here’s a quick reference for the most common sizes and their typical uses:

Width × Common Length	Typical Use	Approx. Interior Sq. Ft.
20×20 ft	Single-car garage, storage shed	400 sq. ft.
30×40 ft	Two-car garage, small workshop	1,200 sq. ft.
40×60 ft	Large workshop, small barn	2,400 sq. ft.
50×100 ft	Small warehouse, equestrian facility	5,000 sq. ft.
60×120 ft	Commercial shop, mid-size barn	7,200 sq. ft.
80×200 ft	Distribution center, large arena	16,000 sq. ft.

Wall height is equally important. Residential metal buildings often use 10–14 ft eave heights, while commercial and agricultural structures commonly specify 16–24 ft. If you plan to use a vehicle lift or store tall equipment, plan for at least 14–16 ft clear height.

Decision rule: Choose a width at least 20% larger than your current need. Most owners who size a metal building to their exact present need report wishing they had gone larger within three to five years.

Edge case: Widths beyond 150 ft typically require multi-span (or “clear-span plus lean-to”) designs because single clear-span steel frames become cost-prohibitive at extreme widths. Your manufacturer’s engineer will flag this during the quote process.

How Much Does It Cost to Build a Metal Building Home or Structure?

The total cost of a metal building depends on four main variables: the steel kit price, site preparation, foundation, and interior finish level. For a complete, finished structure, budget $40–$100 per square foot in most U.S. regions as of 2026, though high-cost markets (California, New York metro) can push that to $120–$150 per square foot.

Cost breakdown by component (estimates for a 40×60 ft building):

• Steel kit (delivered): $18,000–$35,000
• Site prep and grading: $3,000–$12,000
• Concrete slab foundation: $8,000–$18,000
• Erection/labor: $10,000–$25,000
• Insulation: $4,000–$12,000
• Electrical, plumbing, HVAC: $8,000–$30,000+ (varies heavily by use)
• Interior finishing (drywall, flooring, etc.): $5,000–$40,000+

Total estimated range for a finished 40×60 ft metal building: $56,000–$172,000, depending on finish level and location.

For a metal building home specifically, expect costs closer to $80–$130 per square foot for a livable, code-compliant residence. This is often competitive with traditional stick-frame construction, especially for larger footprints (2,000+ sq. ft.).

Common mistake: Many buyers compare only the steel kit price to a wood-frame quote. Always compare total installed costs, including foundation, insulation, and finishing, before deciding which construction method is more economical.

Steel vs. Wood Frame Construction: Which Is Better for a Workshop?

For workshops larger than 1,000 square feet, steel frame construction is almost always more cost-effective and practical than wood. Steel spans longer distances without interior support columns, which maximizes usable floor space — a critical factor for workshops where you need to maneuver large equipment or vehicles.

Steel frame advantages for workshops:

• Clear spans up to 150+ ft with no interior columns
• Non-combustible (important if you store flammable materials)
• Resistant to termites, rot, and mold
• Faster erection time (a 40×60 kit can be erected in 3–5 days by a crew)
• Easier to expand by adding bays to the end

Wood frame advantages for workshops:

• Lower upfront cost for very small structures (under 600 sq. ft.)
• Easier DIY construction for those with carpentry skills
• Better thermal mass in some climates without added insulation
• More familiar to local contractors in rural areas

Choose steel if: Your workshop is larger than 1,000 sq. ft., you need clear span interior space, you’re in an area with high termite or moisture risk, or you plan to expand in the future.

Choose wood if: You’re building a small hobby shed under 400 sq. ft., you want a DIY project using standard lumber, or local labor costs for steel erection are unusually high.

Common Mistakes People Make When Designing Metal Building Layouts

Poor planning at the design stage is the single most expensive mistake in metal building projects. Most errors are avoidable with a few hours of upfront thinking.

The seven most common design mistakes:

1. Underestimating door sizes. A 10-ft wide × 10-ft tall overhead door sounds large until you try to fit a boat trailer or RV through it. Measure your largest vehicle with mirrors extended, then add 2 ft on each side and 1 ft on top.
2. Ignoring wind and snow load codes. Every region has specific load requirements. A building designed for 90 mph winds in Florida will not meet the 130 mph requirements common in Gulf Coast counties. Always confirm local requirements before ordering.
3. Not planning insulation from the start. Adding insulation after erection is expensive and sometimes structurally awkward. Decide on your insulation system before the building is ordered so the framing can accommodate it.
4. Placing doors on the wrong wall. Prevailing wind direction, sun angle, and traffic flow should all influence door placement. A large opening on the windward wall can create serious pressure and moisture problems.
5. Forgetting about drainage. Water must flow away from the building. A 1% slope (1 inch per 8 feet) around the perimeter is a minimum; 2% is better.
6. Skipping the electrical rough-in plan. Conduit and panel placement is far easier to plan before the slab is poured. Think about where every outlet, light, and circuit will go.
7. Choosing the wrong eave height. A 10-ft eave height feels adequate until you install a car lift, overhead storage, or a mezzanine. Most experienced builders recommend going at least 2 ft taller than your current minimum need.

Can I Customize Metal Building Floor Plans for a Garage?

Yes, metal building floor plans for garages are highly customizable. Steel building manufacturers offer standard “garage packages” but will modify nearly any dimension, door placement, window configuration, or interior partition layout on request.

Popular garage customizations:

• Multiple overhead doors on the same wall or opposing walls (drive-through configuration)
• Walk-in doors with keypad or smart-lock entry
• Skylights or translucent roof panels for natural light without windows
• Interior partition walls to separate a workshop area from storage
• Lean-to additions for covered parking alongside the main structure
• Mezzanine floors for office space or additional storage above the main bay

A 30×40 ft metal garage with two 10×10 overhead doors, a walk-in door, two windows, and a 12-ft eave height is one of the most popular configurations in the U.S. as of 2026. This layout gives you roughly 1,200 sq. ft. of clear floor space — enough for three vehicles plus a workbench area.

For a garage-specific floor plan, consider these questions before finalizing:

• How many vehicles, and what are their dimensions (including height)?
• Do you need a dedicated workspace separate from parking?
• Will you add a bathroom or utility sink? (This requires plumbing rough-in before the slab.)
• Do you want the garage to match the aesthetic of an existing home?

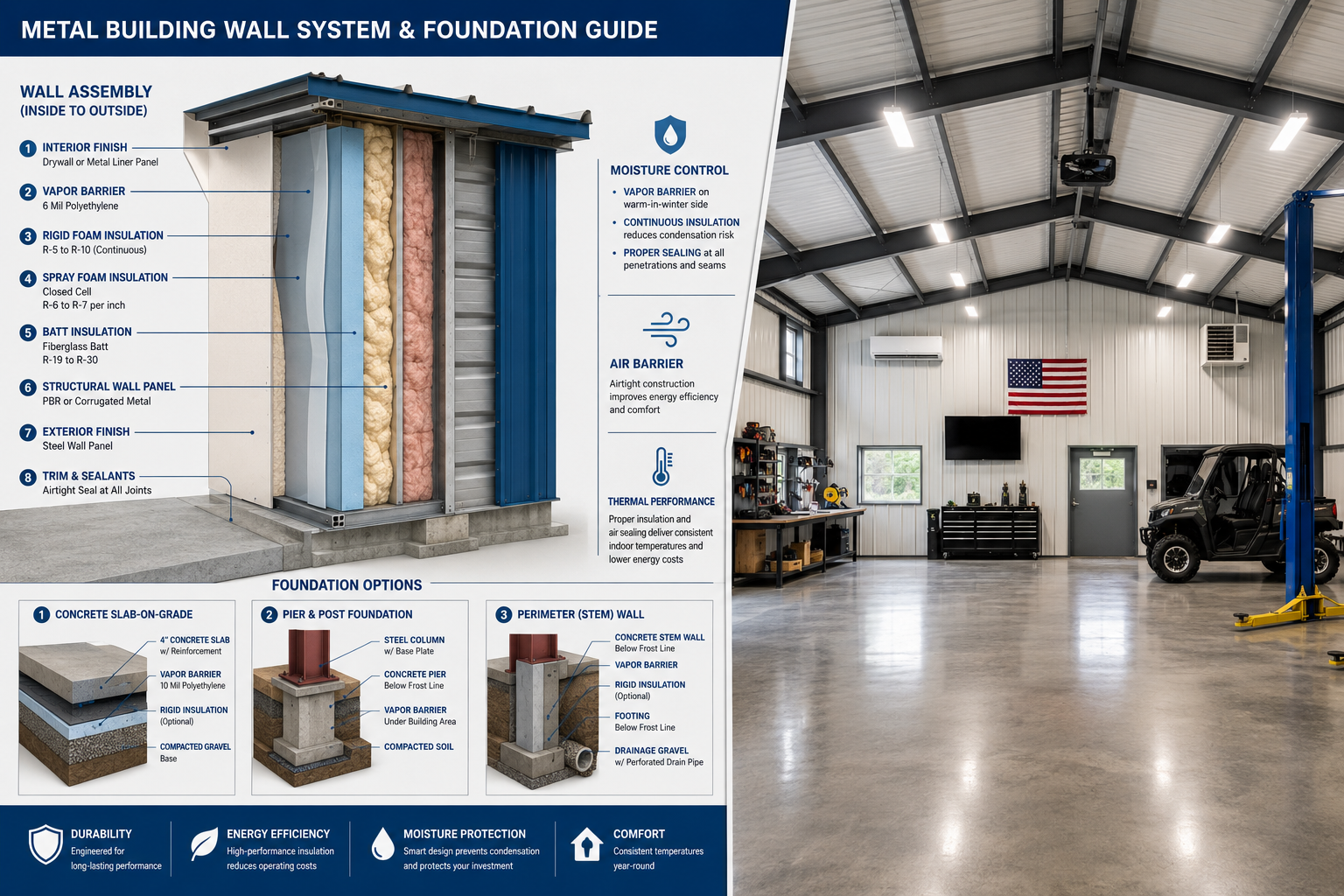

What Kind of Foundation Works Best for Metal Buildings?

The best foundation for a metal building depends on soil conditions, building use, and local code requirements. For most applications, a reinforced concrete slab is the standard choice and the most cost-effective option for buildings under 10,000 sq. ft.

Foundation types and when to use each:

Foundation Type	Best For	Key Consideration
Concrete slab-on-grade	Garages, workshops, most commercial	Most common; requires good drainage and proper thickness (4–6 in. min.)
Perimeter wall (stem wall)	Homes, offices, finished interiors	Allows crawl space; better thermal separation from ground
Pier/caisson system	Unstable soils, flood zones, sloped sites	Higher cost; requires engineering analysis
Engineered fill + slab	Expansive clay soils	Requires geotechnical report

Slab thickness guidelines:

• Light storage or residential: 4 inches with #4 rebar on 18-inch centers
• Vehicles and light equipment: 5–6 inches with #4 rebar on 12-inch centers
• Heavy equipment or forklifts: 6–8 inches with #5 rebar; consult a structural engineer

Important: The anchor bolt pattern for your steel frame must be embedded in the concrete before it cures. Get the anchor bolt plan from your building manufacturer before the slab is poured — this is a non-negotiable sequencing requirement.

Are Metal Building Floor Plans Good for Agricultural Use?

Metal buildings are among the best choices for agricultural applications. They’re durable, relatively low-maintenance, and can be configured to house livestock, store equipment, process crops, or serve as multi-purpose farm facilities.

Common agricultural metal building uses:

• Equipment storage barns: 60×100 ft or larger, with wide drive-through doors (14–16 ft tall) for combines and tractors
• Hay and feed storage: Open-sided or partially enclosed structures with high eave heights (18–24 ft) to accommodate hay stacking
• Livestock housing: Enclosed buildings with ventilation panels, concrete aprons, and interior partition options
• Riding arenas: Clear-span designs from 60 ft to 120 ft wide, typically 150–300 ft long, with 16–20 ft eave heights
• Poultry and hog facilities: Specialized ventilation and insulation requirements; work with a manufacturer experienced in these designs

Agricultural permitting advantage: In many U.S. states, agricultural buildings on working farms are exempt from standard commercial building permits or face reduced requirements. This can significantly cut both cost and timeline. Check with your county assessor and building department — rules vary considerably by state and parcel classification.

Design tip for agricultural use: Plan for a concrete apron (a 10–20 ft wide paved area) at all door openings. Unpaved entries become mud problems quickly with heavy equipment traffic.

How Do Commercial Metal Building Designs Differ from Residential?

Commercial metal building designs differ from residential primarily in load requirements, code compliance standards, accessibility requirements, and finish expectations. A commercial structure must meet stricter occupancy, fire, and accessibility codes — all of which affect the floor plan from the start.

Key differences:

Design Factor	Residential Metal Building	Commercial Metal Building
Building code	IRC (International Residential Code)	IBC (International Building Code)
Occupancy classification	R-3 (single family)	Varies: B (office), S (storage), F (factory), etc.
ADA compliance	Not required	Required for public-facing spaces
Fire suppression	Rarely required	Often required above certain sq. ft. thresholds
Energy code	IECC residential chapter	IECC commercial chapter (stricter)
Restroom requirements	1 bathroom minimum	Calculated by occupancy load

For commercial floor plans, additional design considerations include:

• Egress planning: Exit door quantity, width, and travel distance are code-mandated based on occupancy.
• Mechanical room placement: HVAC equipment, electrical panels, and fire suppression risers need dedicated, accessible space.
• Loading dock integration: Warehouses and distribution centers need dock height coordination (typically 48–52 inches above grade) with the floor plan.
• Office-to-warehouse ratio: Many small business owners underestimate the office space they need. A common rule of thumb is 10–15% of total square footage for office and restroom areas in a light industrial building.

What Floor Plans Work Best for Small Business Warehouses?

For small business warehouses (typically 2,000–10,000 sq. ft.), the most effective floor plans combine a clear-span open storage area with a dedicated office/restroom zone along one end wall. This layout maximizes usable storage space while keeping administrative functions separate and accessible from the parking area.

Recommended layout for a 50×100 ft small business warehouse:

• Front 20 ft (office zone): Reception, 1–2 private offices, restrooms, break room — approximately 1,000 sq. ft.
• Rear 80 ft (warehouse zone): Open clear-span storage, 4,000 sq. ft. with 24-ft clear height
• Loading access: One or two grade-level overhead doors (12×14 ft) on the rear or side wall
• Personnel door: Walk-in entry from parking lot directly to office zone

Shelving and racking consideration: If you plan to use pallet racking, design the floor plan around rack row spacing (typically 8–10 ft aisles between rows) before finalizing door and column placement. A column in the wrong location can eliminate an entire rack row.

Quick example: A 60×120 ft metal building with a 20-ft office end and 100-ft warehouse bay gives you 7,200 sq. ft. total — a very common configuration for HVAC contractors, plumbing supply companies, and light manufacturing operations.

Pros and Cons of Open vs. Closed Metal Building Floor Plans

Open floor plans (clear-span, no interior columns) offer maximum flexibility but cost more per square foot at very large widths. Closed or multi-span plans use interior columns to reduce structural steel costs but limit how the interior space can be arranged.

Open (clear-span) floor plans:

✅ Pros:

• Complete interior flexibility — move walls, equipment, or racking anywhere
• No columns to work around for vehicle maneuvering
• Easier to reconfigure as your business or needs change
• Better resale value for commercial properties

❌ Cons:

• Higher steel cost at widths above 80–100 ft
• Longer lead times for very wide clear-span frames
• Requires larger primary frames (heavier steel = higher shipping cost)

Closed (multi-span) floor plans:

✅ Pros:

• Lower cost per square foot for very large buildings (100+ ft wide)
• Columns can double as partition anchors or mezzanine supports
• Standard for very large distribution and manufacturing facilities

❌ Cons:

• Interior columns restrict layout options
• Column placement must be planned carefully around equipment and traffic flow
• Harder to reconfigure later

Decision rule: Choose clear-span if your building is under 100 ft wide or if interior flexibility is important. Choose multi-span if you’re building over 120 ft wide and the column locations can be integrated into your layout plan from the start.

What Insulation Options Work Well in Metal Buildings?

Metal buildings require deliberate insulation planning because steel conducts heat and cold much more efficiently than wood — a property called thermal bridging. The right insulation system depends on your climate, building use, and budget.

The four main insulation options for metal buildings:

1. Fiberglass batt insulation (vinyl-faced): The most common and affordable option. Installed between purlins and girts. R-values typically range from R-10 to R-19 for walls and R-19 to R-38 for roofs. Best for climate-controlled storage and light commercial use.
2. Spray polyurethane foam (SPF): Applied directly to the interior of the metal panels. Eliminates thermal bridging and acts as a vapor barrier simultaneously. R-value of approximately R-6 to R-7 per inch. Best for residential, food processing, and cold storage applications. Higher upfront cost but excellent long-term performance.
3. Rigid board insulation: Installed in layers between the frame and liner panels. Good for achieving higher R-values in wall assemblies. Often used in combination with batt insulation.
4. Reflective insulation (radiant barrier): A foil-faced product that reflects radiant heat. Works best in hot climates and is often used under metal roofing. Not a substitute for mass insulation in cold climates.

Recommended R-values by climate zone (U.S. DOE climate zones):

Climate Zone	Roof R-Value	Wall R-Value
Zones 1–2 (Hot/humid)	R-25 minimum	R-13 minimum
Zones 3–4 (Mixed)	R-30 minimum	R-13 to R-19
Zones 5–6 (Cold)	R-38 minimum	R-19 to R-25
Zones 7–8 (Very cold)	R-49+	R-25 to R-30

Common mistake: Installing insulation without a vapor barrier on the warm side in cold climates. Moisture will condense inside the insulation layer, reducing its effectiveness and eventually causing corrosion on the steel frame.

How Do I Prevent Moisture Issues in a Metal Building Interior?

Moisture in metal buildings comes from two sources: exterior water intrusion and interior condensation. Both are preventable with proper design, but they require different solutions.

Preventing exterior water intrusion:

• Ensure all roof panel laps are properly sealed with manufacturer-approved sealant tape
• Install gutters and downspouts sized for your roof area (1 square inch of downspout per 100 sq. ft. of roof is a common guideline)
• Grade the site so water flows away from the foundation on all sides
• Use closed-cell foam backer rod and sealant at all wall-to-foundation transitions

Preventing condensation (interior moisture):

• Install a continuous vapor barrier on the warm side of the insulation
• Ventilate the building adequately — a minimum of 1 sq. ft. of ventilation per 150 sq. ft. of floor area is a common standard for unconditioned spaces
• Use ridge vents combined with soffit or sidewall vents for passive ventilation
• In high-humidity climates or buildings with moisture-generating activities (car washing, livestock, cooking), add mechanical exhaust ventilation
• Consider spray foam insulation, which eliminates the air gap where condensation typically forms

Condensation is the more common problem in metal buildings, especially in workshops and garages where temperature swings are frequent. A building that’s warm during the day and cold at night will experience condensation on the metal panels unless the insulation system is properly designed.

What Building Codes Do I Need to Know for Metal Building Design?

Building codes for metal buildings vary by jurisdiction, but most U.S. localities adopt versions of the International Building Code (IBC) for commercial structures and the International Residential Code (IRC) for homes. The specific codes that apply to your project depend on building use, size, and location.

Core code considerations for metal building design:

• Wind load: Determined by geographic location. ASCE 7 (the structural loading standard) maps wind speed zones across the U.S. Your building manufacturer must design to the wind speed for your specific county.
• Snow load: Ground snow load varies from 0 psf in southern states to 100+ psf in mountain regions. This directly affects roof slope and frame weight.
• Seismic zone: Buildings in earthquake-prone areas (Pacific Coast, parts of the Midwest) require seismic design provisions that affect anchor bolt design and frame connections.
• Energy code: The International Energy Conservation Code (IECC) sets minimum insulation and fenestration requirements. Commercial buildings face stricter requirements than residential.
• Occupancy and use classification: The IBC assigns occupancy classifications (A, B, E, F, H, I, M, R, S, U) that determine fire resistance, egress, and sprinkler requirements.
• Zoning and setbacks: Local zoning ordinances set minimum setbacks from property lines, maximum building heights, and permitted uses by zone. These are separate from building codes and must be checked with your local planning department.

Practical step: Before ordering any metal building, submit a “pre-application” inquiry to your local building department. Ask specifically about: required design loads, permit fees, plan review timeline, and whether the building use requires a licensed engineer’s stamp on the drawings. Most reputable metal building manufacturers will provide stamped engineering drawings as part of the package — confirm this before signing a contract.

Frequently Asked Questions

Q: How long does it take to get a metal building permit?
A: Permit timelines vary widely. Simple agricultural or storage buildings in rural counties may be approved in 1–2 weeks. Commercial structures in urban areas with full plan review can take 4–12 weeks or longer. Always apply for permits before ordering the steel kit, since lead times for the kit (typically 6–14 weeks) can run concurrently with permit review.

Q: Can I build a metal building myself (DIY)?
A: Yes, many homeowners successfully erect metal building kits themselves, especially for smaller garages and storage buildings. Most manufacturers provide detailed erection manuals. However, the foundation work and electrical connections typically still require licensed contractors, and some jurisdictions require a licensed contractor for the structural erection as well. Confirm local requirements before planning a DIY erection.

Q: What is the lifespan of a metal building?
A: A properly designed and maintained metal building can last 50 years or more. The primary longevity factors are paint system quality (look for Galvalume or Kynar 500 coatings), proper drainage, and periodic inspection of sealants and fasteners. Galvalume steel panels carry manufacturer warranties of 40 years against perforation from corrosion in most residential and light commercial applications.

Q: Do metal buildings hold their value?
A: Metal buildings generally hold value well, particularly for commercial and agricultural uses. Residential metal homes (Barndominium-style) have seen strong resale demand in many rural markets as of 2026. However, appraisal can be challenging in areas where comparable sales are limited, which may affect financing options.

Q: Can I add on to a metal building later?
A: Yes, adding length to a metal building (adding bays to the end) is relatively straightforward and is one of the biggest advantages of steel construction. Widening a building is more complex and usually requires engineering analysis of the existing frame. Plan your expansion direction when you design the original building — typically, you want the endwall (not the sidewall) facing the direction of future expansion.

Q: What is a Barndominium, and how does it differ from a standard metal building floor plan?
A: A Barndominium is a metal building designed and finished as a residential living space, often combining living quarters with a workshop or garage bay under one roof. The floor plan typically includes a residential wing (kitchen, bedrooms, bathrooms) attached to or integrated with an open bay area. Barndominiums follow residential building codes and require full residential finish levels (insulation, HVAC, plumbing, electrical) in the living areas.

Q: How do I choose between a single-slope (lean-to) and a gable roof for my metal building?
A: Gable roofs (peaked in the center) are better for wider buildings, areas with heavy snow loads, and when you want a traditional aesthetic. Single-slope (mono-pitch) roofs work well for lean-to additions, narrow buildings, and situations where you want to direct drainage to one side. Single-slope roofs are also slightly less expensive to frame for narrow widths.

Q: Are metal buildings energy-efficient?
A: Metal buildings can be very energy-efficient when properly insulated, but the steel frame itself conducts heat. The key is breaking the thermal bridge with continuous insulation systems (spray foam or rigid board) rather than relying solely on batt insulation between the framing members. A well-insulated metal building can meet or exceed the energy performance of a comparable wood-frame structure.

Q: What is the minimum roof pitch for a metal building?
A: Most metal building manufacturers require a minimum roof pitch of 1:12 (1 inch of rise per 12 inches of run) for standing seam metal roofing systems. R-panel and exposed fastener systems typically require a minimum of 2:12. Steeper pitches (3:12 or 4:12) are recommended in high-snow or high-rainfall regions.

Q: Do I need a geotechnical (soil) report before building?
A: For most standard residential and light commercial metal buildings on stable soils, a soil report is not required. However, if your site has expansive clay, fill material, high water table, or is in a seismic zone, a geotechnical report is strongly recommended and may be required by your building department. The cost of a basic soil report ($500–$2,000) is small compared to the cost of a foundation failure.

Conclusion: Your Next Steps for Metal Building Design Success

A well-executed metal building floor plan balances your current needs, your future growth, and the physical constraints of your site and local codes. The process doesn’t have to be complicated, but it does require deliberate sequencing.

Actionable next steps:

1. Define your use case clearly. Write down every activity that will happen in the building, every piece of equipment you’ll store or use, and your realistic 10-year growth projection before you talk to a single manufacturer.
2. Check zoning and code requirements first. Contact your local planning and building departments before spending money on design. Confirm setbacks, permitted uses, required design loads, and permit fees.
3. Get at least three quotes from reputable manufacturers. Compare total installed costs, not just kit prices. Ask each manufacturer whether stamped engineering drawings are included and what the lead time is.
4. Plan your foundation and utilities before the slab. Work with a licensed engineer or experienced contractor to design the slab, anchor bolt layout, and utility rough-ins before concrete is poured.
5. Choose your insulation system at the design stage. Don’t treat insulation as an afterthought. Decide on your system (batt, spray foam, rigid board, or a combination) before the building is ordered so the framing can accommodate it.
6. Size up, not down. If you’re between two sizes, choose the larger one. The incremental cost of an extra 10 or 20 feet of length is almost always less than the cost of a future addition.

This Metal Building Floor Plans and Design Guide is intended to give you a solid foundation for making informed decisions — whether you’re designing a simple garage, a full agricultural complex, or a commercial warehouse. The more clearly you define your needs before the design process begins, the more likely you are to end up with a building that serves you well for decades.

References

• American Institute of Steel Construction (AISC). Steel Construction Manual. AISC, 2017. https://www.aisc.org
• American Society of Civil Engineers. ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings and Other Structures. ASCE, 2022. https://www.asce.org/asce-7
• International Code Council. International Building Code (IBC) 2021. ICC, 2020. https://www.iccsafe.org
• International Code Council. International Residential Code (IRC) 2021. ICC, 2020. https://www.iccsafe.org
• U.S. Department of Energy. Building Energy Codes Program: IECC Climate Zone Map. DOE, 2021. https://www.energycodes.gov
• Metal Building Manufacturers Association (MBMA). Metal Building Systems Manual. MBMA, 2019. https://www.mbma.com
• North American Insulation Manufacturers Association (NAIMA). Metal Building Insulation Application Guide. NAIMA, 2020. https://www.naima.org
