Last updated: June 3, 2026
Quick Answer: A 20×20 metal garage is a 400-square-foot prefabricated steel structure that fits two compact cars side by side or one vehicle plus a work area. In 2026, installed costs typically range from $4,000 to $12,000 depending on gauge, region, and foundation type. Most homeowners can have a kit assembled in one to three days with basic tools and two people.
Key Takeaways
- A 20×20 metal garage costs between $4,000 and $12,000 fully installed, with DIY kits starting around $2,500
- The structure fits two small cars side by side, but one full-size truck with a workshop is a more realistic use case
- A concrete slab is the most common and recommended foundation, though gravel pads and asphalt are used in some regions
- Most jurisdictions require a building permit; always check local codes before purchasing
- Galvanized steel and factory-applied paint coatings are the primary rust-prevention tools; annual inspections extend lifespan significantly
- Metal garages outperform wood in fire resistance, pest resistance, and long-term maintenance cost
- Homeowners insurance can cover a metal garage as a detached structure, but you must add it to your policy
- Common installation mistakes include skipping anchor bolts, ignoring drainage slope, and under-sizing the door opening
- Prefab metal garages are generally worth the investment for homeowners who need durable, low-maintenance storage
What Is a 20×20 Metal Garage and Who Is It For?
A 20×20 metal garage is a prefabricated steel building measuring 20 feet wide by 20 feet deep, yielding 400 square feet of enclosed space. It is designed for homeowners, hobbyists, small contractors, and rural property owners who need covered vehicle storage, a workshop, or secure equipment housing without the cost and complexity of a full masonry or wood-framed structure.
This size is best suited for:
- One full-size pickup truck or SUV with room to walk around
- Two compact or mid-size sedans parked side by side
- One vehicle plus a dedicated workbench and tool storage area
- ATV, boat, or lawn equipment storage with organizational shelving
It is not the right choice for someone who needs to fit two full-size trucks simultaneously. In that case, a 20×30 or 24×24 structure is worth the additional cost.
What Is the Typical Cost for a 20×20 Metal Garage?
A 20×20 metal garage kit (materials only, no installation) generally costs between $2,500 and $6,000 in 2026, depending on steel gauge, door configuration, and manufacturer. With professional installation, site preparation, and a concrete slab, total project costs typically land between $6,000 and $12,000.
Cost breakdown by component (estimates):
| Component | Estimated Cost Range |
|---|---|
| Metal garage kit (materials) | $2,500 – $6,000 |
| Concrete slab (20×20, 4-inch) | $1,200 – $3,500 |
| Professional installation labor | $800 – $2,500 |
| Permits and inspections | $100 – $600 |
| Electrical rough-in (optional) | $500 – $1,500 |
| Total (estimated) | $5,100 – $14,100 |
Prices vary by region. Labor costs in the Northeast and West Coast are higher than in the Midwest and South. Buying directly from a steel building manufacturer rather than a reseller typically saves 10 to 20 percent on the kit price.
Common mistake: Many buyers budget only for the kit and are surprised by foundation and permit costs. Always get a total project estimate before committing.
How Long Does It Take to Assemble a 20×20 Metal Garage Kit?
Most 20×20 metal garage kits can be assembled in one to three days by two people with basic mechanical skills. Manufacturers design these kits for DIY installation, with pre-punched holes, color-coded components, and step-by-step instructions.
Typical assembly timeline:
- Day 1: Lay out anchor bolts on the cured slab, assemble base rails, and erect corner columns
- Day 2: Install roof trusses, purlins, and wall panels
- Day 3: Hang the roll-up door, install trim, and seal all panel seams
Professional crews with experience can complete the same job in a single day. If you are doing it yourself for the first time, plan for two full days and have a third person available for lifting roof components.
Edge case: If your slab is freshly poured, you must wait a minimum of 28 days for full cure before anchoring. Rushing this step can cause anchor bolt failure under load.
Is a 20×20 Metal Garage Big Enough for Two Cars?
A 20×20 metal garage can fit two cars, but with important caveats. Two compact sedans (such as a Honda Civic or Toyota Corolla) will fit side by side with minimal clearance. Two full-size trucks or SUVs will not fit comfortably, and opening doors without denting adjacent vehicles becomes difficult.
Practical guidance:
- Two compact cars: Fits, but door-opening clearance is tight (roughly 18 to 24 inches per side)
- One mid-size SUV + one compact car: Workable with careful parking
- Two full-size trucks: Not recommended; consider a 20×30 or 24×24 instead
- One vehicle + workshop bench: The most popular and functional use of 20×20 space
If dual-vehicle storage is the primary goal, budget for a wider footprint from the start. Upgrading later is expensive because foundation and framing must be replaced entirely.
What Foundation Do I Need for a 20×20 Metal Garage?
A 4-inch reinforced concrete slab is the standard and most recommended foundation for a 20×20 metal garage. It provides a level, stable surface, supports anchor bolt installation, and meets building code requirements in most jurisdictions.
Foundation options compared:
| Foundation Type | Cost (estimate) | Durability | Code Compliance |
|---|---|---|---|
| 4-inch concrete slab | $1,200 – $3,500 | Excellent | Meets most codes |
| 6-inch concrete (heavy use) | $1,800 – $4,500 | Superior | Meets all codes |
| Compacted gravel pad | $400 – $1,000 | Moderate | May not meet code |
| Asphalt pad | $800 – $2,000 | Moderate | Varies by jurisdiction |
| Concrete piers/footings | $600 – $2,000 | Good | Common in cold climates |
In cold climates, frost-depth footings are required to prevent heaving. In areas with expansive clay soils, a thicker slab with a vapor barrier is advisable. Always consult your local building department before choosing a foundation type.
What Permits Do I Need to Install a 20×20 Metal Garage?
In most U.S. jurisdictions, a building permit is required for any permanent structure over 120 to 200 square feet, which means a 20×20 metal garage (400 square feet) almost always requires a permit. Some rural counties have more lenient rules, but assuming you do not need one is a costly mistake.
Typical permit requirements include:
- A site plan showing the structure’s location relative to property lines and setbacks
- Foundation drawings or specifications
- Manufacturer’s engineering documents (most reputable kit suppliers provide these)
- A completed permit application and fee payment
Setback rules vary widely. Many residential zones require structures to be at least 5 to 10 feet from side and rear property lines. HOA rules may impose additional restrictions.
Practical tip: Call your local building department before purchasing the kit. Ask specifically whether a metal prefab structure requires the same permit as a stick-built garage. Some jurisdictions have a streamlined process for prefab steel buildings.
Are Metal Garages Good in Areas With Heavy Snow or High Winds?
Yes, metal garages perform well in demanding weather conditions, but the specific steel gauge and engineering certification matter significantly. A properly engineered 20×20 metal garage can be certified for snow loads of 20 to 30 pounds per square foot and wind speeds of 90 to 140 mph, depending on the manufacturer and options selected.
What to look for:
- Snow load rating: Match or exceed your local ground snow load (available from your building department or ASCE 7 tables)
- Wind speed certification: Check your county’s design wind speed and confirm the kit is rated accordingly
- Roof pitch: A steeper pitch (4:12 or higher) sheds snow more effectively than a flat or low-slope roof
- Steel gauge: 14-gauge steel is significantly stronger than 29-gauge; for heavy-weather regions, 14 or 12-gauge is worth the premium
Common mistake: Buyers in snow-prone states purchase a standard kit rated for 20 psf snow load when their local code requires 30 or 40 psf. Always verify local requirements before ordering.
Can I Use a 20×20 Metal Garage for Car Storage and a Workshop?
A 20×20 metal garage works well as a combination car storage and workshop space, and this dual-use configuration is one of the most popular setups among buyers. With one vehicle parked inside, you have roughly 100 to 150 square feet of usable floor space remaining for a workbench, tool storage, and a small equipment area.
To make the dual-use layout work:
- Install a single 10-foot wide roll-up door to maximize the remaining wall space for shelving
- Run a 20-amp or 30-amp electrical circuit for power tools and lighting
- Add a side entry door for workshop access without opening the main garage door
- Use wall-mounted pegboards and overhead storage to keep the floor clear
- Consider an insulation package if you plan to heat or cool the workshop area
I’ve spoken with several homeowners who started with a pure storage intent and gradually converted half the space into a functioning workshop. The steel wall panels make it easy to mount shelving brackets directly without framing, which is a genuine advantage over wood construction.

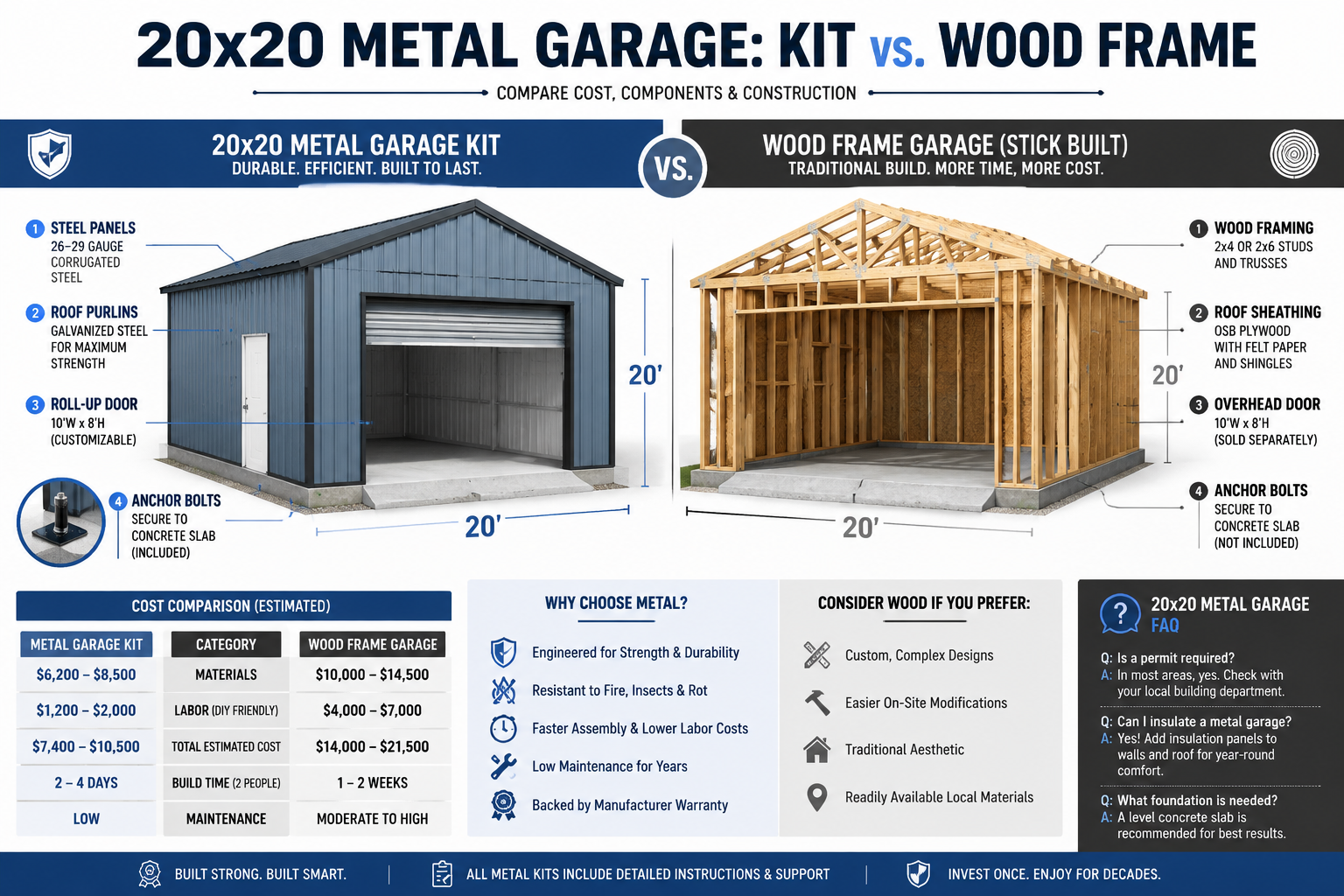

How Do Metal Garages Compare to Wooden Garage Construction?
Metal garages have lower long-term maintenance costs and better resistance to fire, pests, and rot compared to wood-framed garages. Wood garages typically have a higher initial aesthetic appeal and are easier to modify after construction, but they require more ongoing upkeep.
Side-by-side comparison:
| Factor | 20×20 Metal Garage | 20×20 Wood Garage |
|---|---|---|
| Typical installed cost | $6,000 – $12,000 | $10,000 – $20,000+ |
| Assembly time | 1-3 days | 1-2 weeks |
| Fire resistance | High (steel is non-combustible) | Low |
| Pest/termite resistance | Excellent | Poor without treatment |
| Maintenance frequency | Low (annual inspection) | Moderate to high |
| Customization after build | Limited | Easy |
| Lifespan (maintained) | 30-50+ years | 20-40 years |
| Resale appeal | Moderate | Moderate to high |
For most utilitarian applications, metal wins on cost and durability. If curb appeal and architectural matching are priorities, wood or a hybrid structure may be worth the premium.
How Do I Prevent Rust on My 20×20 Metal Garage?
Factory-applied galvanized coatings and baked-on paint finishes are the primary rust-prevention systems on modern steel garages. With proper maintenance, a quality metal garage should not show significant rust for 20 to 40 years.
Rust prevention steps:
- Choose galvanized steel panels (G-90 galvanization rating or better) when ordering the kit
- Touch up scratches and cut edges with zinc-rich primer within the first season
- Keep gutters and drainage clear so water does not pool against the base rail
- Inspect annually for paint chips, fastener corrosion, and panel seam gaps
- Apply a rust-inhibiting sealant to any exposed metal at panel overlaps and around door frames
- Ensure proper ventilation inside the structure to reduce condensation, which accelerates corrosion from the inside out
Edge case: In coastal environments with salt air, rust progression is faster. In these areas, a 26-gauge or heavier panel with a Kynar 500 or PVDF paint finish provides meaningfully better corrosion resistance than standard polyester coatings.
What Maintenance Is Required for a Metal Garage Structure?
Metal garages require minimal but consistent maintenance. An annual inspection and cleaning routine is sufficient for most climates, making them significantly less demanding than wood structures.
Annual maintenance checklist:
- Inspect all fasteners and tighten any that have loosened due to thermal expansion
- Check roof panel seams and reapply butyl tape or sealant where gaps appear
- Clean gutters and downspouts (if installed) to prevent water backup
- Wash exterior panels with a mild detergent to remove dirt and organic buildup
- Inspect the base rail for soil contact and clear any debris that traps moisture
- Lubricate roll-up door springs, hinges, and tracks with a silicone-based lubricant
- Touch up any paint chips or scratches with manufacturer-matched touch-up paint
This routine takes most homeowners two to four hours per year. Compare that to a wood garage, which may require repainting every five to seven years and periodic rot repair.
Are Prefab Metal Garages Worth the Investment?
Prefab metal garages are worth the investment for most homeowners who need durable, low-maintenance storage or workspace. The combination of lower installed cost versus wood construction, faster assembly, and a 30-to-50-year lifespan makes the value proposition strong.
Choose a prefab metal garage if:
- Your primary need is functional storage rather than architectural aesthetics
- You want to minimize long-term maintenance costs
- You need the structure up quickly (weeks, not months)
- You are in a region with fire risk, pest pressure, or severe weather
Consider alternatives if:
- Your HOA or local zoning prohibits metal structures
- You want the garage to match the architectural style of your home closely
- You plan to finish the interior as living or office space (wood framing is more adaptable)
On resale value: A well-maintained metal garage adds value to a property, though typically less than an attached or architecturally matched wood garage. A 2021 analysis by the National Association of Realtors found that detached garage additions generally recoup 60 to 80 percent of their cost at resale, though specific figures for metal structures vary by market.
Can Homeowners Insurance Cover a 20×20 Metal Garage?
Yes, homeowners insurance can cover a 20×20 metal garage as a detached structure, but coverage is not automatic. Most standard homeowners policies include an “other structures” provision that covers detached buildings at 10 percent of the dwelling coverage limit. For a home insured at $300,000, that means up to $30,000 in detached structure coverage.
Steps to ensure your garage is covered:
- Notify your insurance provider when the structure is complete
- Provide the replacement cost estimate (your kit invoice plus installation costs)
- Ask whether the 10 percent default limit is sufficient; if not, request a rider or endorsement to increase it
- Confirm that business use (if you run a home-based business from the garage) does not void coverage under your residential policy
Important note: If the garage was built without a permit and a claim arises, the insurer may deny or reduce the payout on the grounds that the structure was non-compliant. This is another reason to pull the permit before building.
What Are Common Installation Mistakes When Building a Metal Garage?
The most common installation mistakes in 20×20 metal garage projects involve foundation preparation, anchor placement, and panel sequencing. These errors are easy to avoid with planning but expensive to correct after the fact.
Top mistakes to avoid:
- Skipping anchor bolts: Anchoring the base rail to the slab is not optional. Unanchored structures can shift or overturn in high winds
- Pouring the slab without checking for level: A slab that is off by more than 1/4 inch over 20 feet will cause panel gaps and door alignment problems
- Installing panels out of sequence: Most kits require a specific order; deviating from it makes later panels difficult to align
- Under-sizing the door opening: A 9-foot wide door feels adequate until you try to park a truck with mirrors extended; a 10-foot door is worth the minor upcharge
- Ignoring drainage slope: The surrounding grade should slope away from the structure at a minimum of 1 inch per 8 feet to prevent water intrusion
- Not reading the manual: This sounds obvious, but a significant number of DIY installation problems trace back to skipping the manufacturer’s instructions in favor of “figuring it out”
Frequently Asked Questions About 20×20 Metal Garage FAQ’s
Q: How long does a 20×20 metal garage last?
A: A properly maintained metal garage with galvanized steel panels typically lasts 30 to 50 years or more. Lifespan depends on climate, maintenance frequency, and original steel gauge.
Q: Can I insulate a 20×20 metal garage?
A: Yes. Fiberglass batt insulation, spray foam, and rigid foam board are all compatible with metal garage walls and roofs. Insulation is especially useful if you plan to heat or cool the space for workshop use.
Q: Do I need a professional to assemble a metal garage kit?
A: Not necessarily. Most 20×20 kits are designed for DIY assembly by two people with basic tools. However, hiring a professional crew reduces the risk of installation errors and is often faster.
Q: What gauge steel should I choose for a 20×20 metal garage?
A: For most residential applications, 29-gauge steel is the minimum acceptable. For heavy snow loads, coastal environments, or workshop use with heavy equipment, 26-gauge or 14-gauge framing is a better choice.
Q: Can I add windows or a side door to a 20×20 metal garage?
A: Yes. Most manufacturers offer windows, side entry doors, and vents as standard add-ons. These should be specified at the time of ordering, as retrofitting them later requires cutting panels and adding custom framing.
Q: How much does it cost to add electricity to a 20×20 metal garage?
A: A basic electrical rough-in with a sub-panel, two circuits, and lighting typically costs $500 to $1,500 depending on the distance from the main panel and local labor rates.
Q: Is a concrete slab required, or can I use a gravel base?
A: A gravel base is sometimes used for temporary or agricultural structures, but most residential building codes require a concrete slab for a permanent structure. Check local requirements before choosing a foundation type.
Q: Can a 20×20 metal garage be relocated?
A: Technically yes, but it is labor-intensive and not always practical. The structure must be disassembled, transported, and reassembled on a new foundation. Most owners treat them as permanent installations.
Q: What is the best roof style for a 20×20 metal garage?
A: A vertical roof (panels running vertically from ridge to eave) sheds water and snow more effectively than a horizontal or boxed-eave roof and is the recommended choice for most climates.
Q: Will a 20×20 metal garage increase my property taxes?
A: In most jurisdictions, adding a permanent structure increases assessed property value and, by extension, property taxes. The amount varies by location and local assessment practices.
Conclusion
The 20×20 metal garage FAQ’s covered in this guide address the questions that matter most before you commit to a purchase: cost, foundation, permits, weather performance, rust prevention, and long-term value. The core takeaway is straightforward: a 20×20 metal garage is a cost-effective, durable, and low-maintenance structure that suits the majority of residential storage and workshop needs, provided you plan the project carefully from the start.
Actionable next steps:
- Contact your local building department to confirm permit requirements and setback rules before ordering any kit
- Get at least three quotes from steel building manufacturers, specifying the same gauge, door configuration, and certification requirements in each request
- Hire a concrete contractor to assess your site and quote a slab before finalizing your total budget
- Notify your homeowners insurance provider once the structure is permitted and built to ensure it is covered under your policy
- Order a vertical roof configuration and specify a snow and wind load rating that meets or exceeds your local building code requirements
Taking these steps in order eliminates the most common and costly surprises. A well-planned 20×20 metal garage will serve reliably for decades with minimal upkeep, and that durability is what makes the investment worthwhile.
References
- National Association of Realtors. (2021). Remodeling Impact Report. https://www.nar.realtor/research-and-statistics/research-reports/remodeling-impact
- American Society of Civil Engineers. (2022). ASCE 7-22: Minimum Design Loads and Associated Criteria for Buildings and Other Structures. https://www.asce.org/publications-and-news/asce-7
- Insurance Information Institute. (2023). Homeowners Insurance Basics. https://www.iii.org/article/homeowners-insurance-basics
