Last updated: May 21, 2026
Quick Answer: A bolt together metal building is a prefabricated steel structure whose components — frames, wall panels, roof sheets, and purlins — are factory-cut and shipped flat-packed, then assembled on-site using standard bolts and basic hand tools. No welding is required. These kits suit garages, workshops, agricultural storage, and light commercial use, and they can reduce total project costs by 30–50% compared to conventional stick-built or custom-welded steel structures (estimate based on typical DIY labour savings versus contractor quotes; actual savings vary by region and kit size).
Key Takeaways 🔩
- A bolt together metal building uses pre-drilled, pre-cut steel components fastened with standard hardware — no welding skills needed.
- Kit prices in 2026 range roughly from $8,000 to $60,000+ depending on size, gauge, and supplier; foundation and finishing costs are separate.
- Most homeowners or small crews can erect a mid-size kit (30×40 ft) in 3–5 days with basic tools.
- These structures work well for garages, workshops, barns, agricultural storage, and light commercial applications.
- A concrete slab is the most common foundation choice, though gravel pads and pier systems are used in some agricultural settings.
- Common assembly mistakes include skipping anchor bolt alignment checks and under-torquing fasteners.
- Bolt together buildings are generally less rigid than fully welded frames but perform well in most climate zones when properly anchored and braced.
- Always verify local building codes and wind/snow load ratings before purchasing a kit.
What Exactly Is a Bolt Together Metal Building?
A bolt together metal building is a prefabricated steel structure designed so that every major component connects with standard bolts rather than welded joints. The manufacturer pre-cuts, pre-drills, and labels each piece at the factory, so the builder on-site simply follows an assembly sequence — no welder, no fabricator, no heavy crane required for most residential-scale kits.
The term “bolt together metal building explained” appears frequently in searches because buyers want to understand what separates these kits from traditional construction. The core distinction is this: the engineering and fabrication work happens before the steel ever leaves the factory. What arrives at your property is a numbered kit, much like flat-pack furniture at an industrial scale.

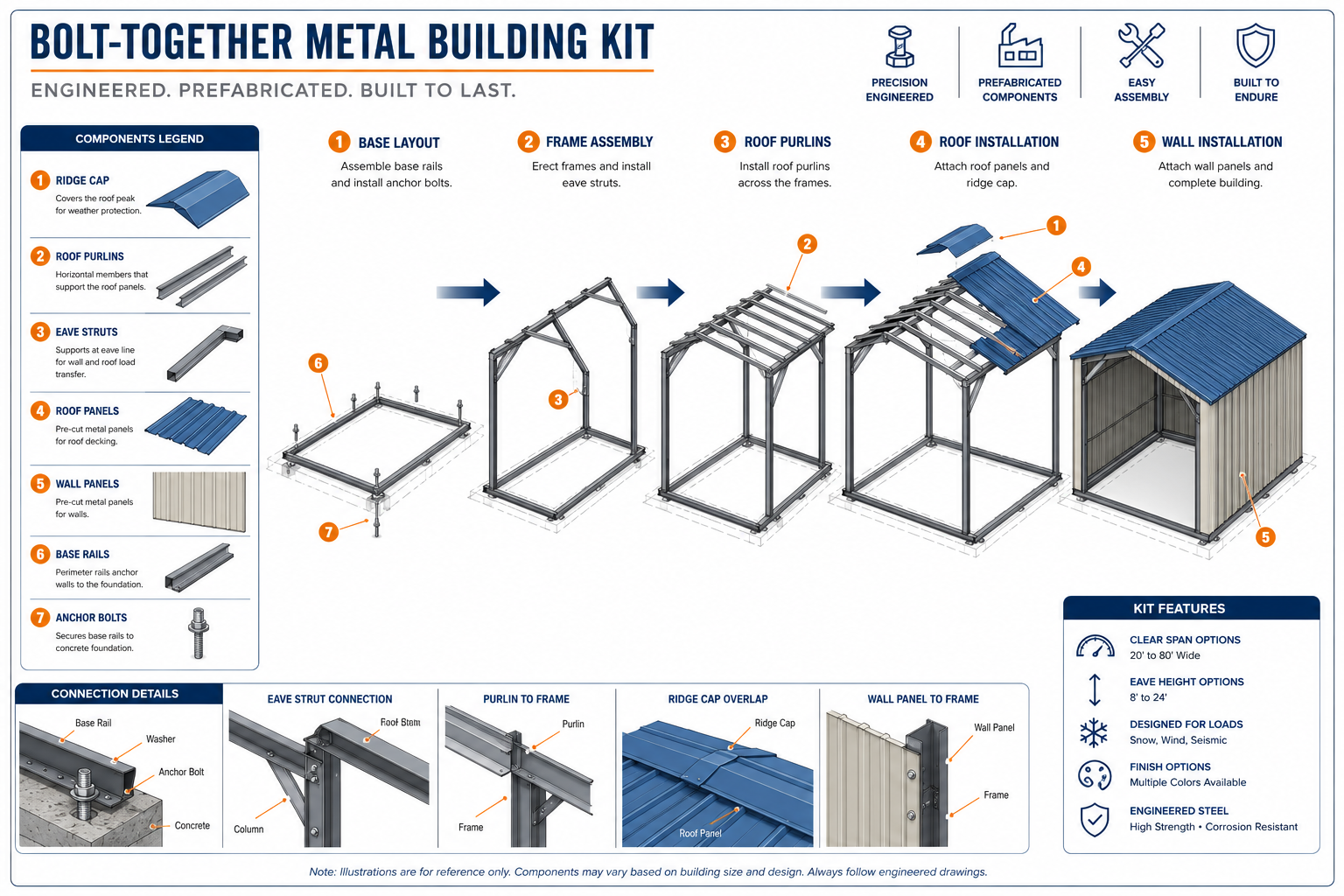

Typical components in a standard kit:
- Primary frames (rigid steel columns and rafters)
- Secondary framing (purlins, girts, eave struts)
- Wall and roof panels (corrugated or standing seam steel)
- Base angle and trim pieces
- Anchor bolts and all structural fasteners
- Doors, windows, and vents (if included in the package)
- Assembly drawings and erection manual
How Much Does It Cost to Build a Metal Building Yourself?
DIY assembly can cut total project costs significantly, but the kit itself is only part of the budget. In 2026, a basic bolt together metal building kit for a 20×30 ft structure starts around $8,000–$12,000 from reputable suppliers. A more common 30×40 ft workshop kit runs $15,000–$28,000. Larger agricultural or commercial sizes (60×100 ft and above) can exceed $60,000 for the kit alone.
Typical cost breakdown (30×40 ft example — estimates):
| Cost Category | Estimated Range |
|---|---|
| Steel building kit | $15,000 – $28,000 |
| Concrete slab foundation | $6,000 – $12,000 |
| Permits and engineering stamps | $500 – $3,000 |
| Insulation (optional) | $2,000 – $6,000 |
| Electrical rough-in (if needed) | $2,500 – $6,000 |
| Total estimated project cost | $26,000 – $55,000 |
⚠️ Common mistake: Many buyers budget only for the kit and forget that foundation, permits, and delivery freight can add 40–70% on top of the kit price.
Choose a higher-gauge (thicker) steel panel if you live in a high-wind or heavy-snow region — the upfront cost difference is modest compared to repair or replacement costs after storm damage.
How Much Can I Expect to Save by Assembling a Metal Building Myself?
Self-assembly is the primary financial argument for bolt together kits. Professional erection crews typically charge $3–$8 per square foot for labour alone (estimate based on industry contractor rate ranges; verify with local quotes). On a 30×40 ft (1,200 sq ft) building, that translates to $3,600–$9,600 in labour savings if you and a small crew handle the work.
Beyond direct labour, DIY assembly eliminates contractor scheduling delays, which can stretch a project by weeks in busy construction markets. That said, savings shrink if you rent equipment (scissor lifts, compressors) or if assembly errors require a professional to correct.
Realistic savings estimate: Most owner-builders report saving $5,000–$15,000 on a mid-size kit versus hiring a full erection crew. Larger kits yield proportionally more savings but also require more people and equipment.
What Tools Do I Need to Assemble a Metal Building Kit?
Most bolt together kits require only common hand and power tools. No welding equipment is needed.
Standard tool list:
- Impact wrench or torque wrench (3/8″ and 1/2″ drive)
- Cordless drill with metal-rated bits
- Tin snips or electric shears (for trim cuts)
- Chalk line and laser level
- Tape measure (100 ft minimum)
- Scaffolding or adjustable work platform
- Come-along or manual chain hoist (for lifting primary frames)
- Safety harness and hard hats
Optional but helpful:
- Scissor lift or telescoping boom lift (rental, approximately $250–$450/day)
- Magnetic drill press for any field-drilled holes
- Rubber mallet for panel alignment
Most kits designed for DIY assembly specify the exact torque settings for each bolt size in the erection manual. Follow those specifications — under-torqued connections are the leading cause of panel rattling and frame movement over time.
How Long Does It Take to Put Up a Bolt Together Metal Structure?
Assembly time depends on building size, crew size, and prior experience. A small 12×20 ft kit can go up in a single weekend with two people. A 30×40 ft workshop typically takes a crew of three to four people 3–5 full working days. Larger structures (50×100 ft) may take 10–15 days with a four-person crew.
Factors that extend assembly time:
- First-time builders unfamiliar with the erection sequence
- Missing or mis-labeled components (contact the supplier immediately)
- Poor weather (high winds make panel handling dangerous)
- Foundation that is out of square or not level within the kit’s tolerance
Pro tip: Lay out all components by section number before you begin erecting anything. Experienced builders consistently say that one hour of organisation at the start saves three hours of confusion mid-build.
Bolt Together vs. Welded Metal Buildings: Pros and Cons
Bolt together and welded steel buildings are both durable, but they serve different needs. Bolt together kits prioritise accessibility and cost; welded frames prioritise maximum rigidity and custom span widths.
| Feature | Bolt Together | Welded/Custom Fabricated |
|---|---|---|
| Assembly skill required | Basic — no welding | Professional welder needed |
| Upfront cost | Lower | Higher (15–40% more, estimated) |
| Relocatability | Yes — can be disassembled | No practical relocation |
| Span width options | Typically up to 80–100 ft | Virtually unlimited |
| Lead time | 4–10 weeks typical | 8–20 weeks typical |
| Structural rigidity | Good for most uses | Superior for heavy industrial |
| DIY-friendly | Yes | No |
Choose a bolt together kit if you need a garage, workshop, barn, or light commercial building and want to control labour costs. Choose welded fabrication if you need clear spans over 100 feet, heavy overhead crane loads, or highly customised geometry.
Are Bolt Together Metal Buildings Good for Workshops or Garages?
Yes — workshops and garages are the most common use case for bolt together metal building kits, and for good reason. The clear-span interior (no interior load-bearing columns in most residential kits) gives unobstructed floor space, which is exactly what a mechanic, woodworker, or hobbyist needs.
A 30×40 ft kit comfortably houses three vehicles with room for a workbench and tool storage. A 40×60 ft kit is a practical size for a small commercial workshop or equipment storage facility.
What makes them work well for this use:
- Steel does not rot, warp, or attract termites
- Insulation can be added to the wall and roof cavity
- Overhead door openings can be framed into the kit at the factory
- Electrical conduit runs cleanly along steel girts
Can I Use a Bolt Together Metal Building for Agricultural Purposes?
Bolt together metal buildings are widely used in agriculture and perform well for hay storage, equipment shelters, livestock housing, and grain storage. Many agricultural buyers choose open-sided or partially open configurations, which most kit manufacturers offer.
Agricultural-specific considerations:
- Ventilation: Specify ridge vents and sidewall vents for livestock buildings to prevent moisture and ammonia buildup.
- Floor options: Gravel or packed dirt floors are acceptable for equipment and hay storage; concrete is preferred for livestock wash areas.
- Clearance height: Tractors and combines require at least 14–16 ft eave height; confirm this before ordering.
- Chemical resistance: Some fertilisers and pesticides corrode standard Galvalume panels; ask your supplier about coated or painted panel options.
Are Metal Building Kits Suitable for Residential or Commercial Use?
Bolt together metal buildings are suitable for both residential and light commercial applications, but local zoning and building codes are the deciding factor. In many rural and semi-rural jurisdictions, steel buildings are permitted as primary residences (often called “barndominium” or “shouse” builds) when they meet local energy and structural codes.
For commercial use — retail, light manufacturing, storage facilities — bolt together kits are a practical and code-compliant option in most jurisdictions, provided the manufacturer supplies stamped engineering drawings for permit submission.
📋 Always confirm: Check with your local building department before purchasing. Some municipalities restrict metal buildings in residential zones or require specific aesthetic treatments (brick veneer, painted panels) for commercial frontage.
What Kind of Foundation Works Best for Bolt Together Metal Buildings?
A reinforced concrete slab is the standard and most reliable foundation for bolt together metal buildings. The anchor bolt pattern is specified in the kit’s engineering drawings, and the slab must be poured to match that pattern within tight tolerances (typically ±1/8 inch).
Foundation options by use case:
- Concrete slab: Best for workshops, garages, and commercial buildings. Provides a clean floor and solid anchor point.
- Perimeter concrete piers: Used in some agricultural and storage applications where a full slab is not needed.
- Gravel pad with concrete footings: A budget option for open-sided equipment shelters; not suitable for enclosed conditioned spaces.
- Existing concrete: Possible if the slab is thick enough (typically 4–6 inches minimum) and anchor bolts can be epoxy-set into the existing concrete.
Critical point: A foundation that is out of square by more than 1/4 inch across the diagonal will cause misalignment of wall panels and doors. Hire a licensed concrete contractor if you are not experienced with slab layout.
How Do I Know What Size Metal Building Kit I Need?
Start with your intended use and work backward to floor area, then add clearance for workflow. A common planning mistake is ordering a building that fits the equipment but leaves no room to move around it.
Sizing guide by use:
- 2-car garage: 24×24 ft minimum; 24×30 ft preferred
- 3-car garage + workshop: 30×40 ft to 40×40 ft
- Agricultural equipment storage: 40×60 ft to 60×80 ft (verify eave height for your tallest equipment)
- Light commercial/retail: Depends on occupancy; consult a local architect or engineer
Also factor in:
- Future expansion (many kits allow end-wall additions)
- Local setback requirements (minimum distance from property lines)
- Snow and wind load requirements (affects frame sizing and cost)
Are Metal Building Kits Durable in Extreme Weather Conditions?
Well-engineered bolt together metal buildings handle extreme weather reliably when the kit is specified for local load conditions. Reputable manufacturers engineer their kits to meet local wind speed and ground snow load requirements — but the buyer must provide accurate site data when ordering.
Weather performance by condition:
- High winds (hurricane/tornado zones): Kits rated for 130–150 mph wind speeds are available; proper anchor bolt installation is critical.
- Heavy snow: Roof pitch and frame gauge must match local ground snow load (measured in pounds per square foot); under-specified kits can fail under heavy accumulation.
- Hail: Steel panels dent but do not crack; most insurance policies cover hail damage on metal buildings.
- Humidity and coastal salt air: Galvalume or Kynar-coated panels resist corrosion well; standard painted panels may require periodic inspection in coastal environments.
What Are Common Mistakes People Make When Assembling Metal Buildings?
The most frequent errors in bolt together metal building assembly fall into three categories: foundation errors, fastener errors, and sequence errors.
Top mistakes and how to avoid them:
- Anchor bolts out of position — Recheck the bolt pattern before the concrete sets. Correcting this after the pour is expensive.
- Skipping the erection sequence — Manufacturers specify the order of assembly for structural reasons. Jumping ahead can leave frames temporarily unstable.
- Under-torquing or over-torquing fasteners — Use a calibrated torque wrench and follow the spec sheet. Hand-tight is never sufficient for structural connections.
- Not squaring the base rail — Measure diagonals before drilling or anchoring anything. A twisted base causes every subsequent component to fight you.
- Ignoring weather windows — Erecting wall panels in winds above 20–25 mph is dangerous and results in damaged panels.
- Ordering without a permit — Some buyers erect first and ask questions later. Unpermitted structures can be ordered demolished or may be uninsurable.
FAQ: Bolt Together Metal Building Explained
Q: Do I need a building permit for a bolt together metal building?
In most jurisdictions, yes. Any permanent structure over a certain square footage (often 200 sq ft) requires a permit. Check with your local building department before ordering.
Q: Can I disassemble and move a bolt together metal building?
Yes. Because connections are bolted rather than welded, the building can be disassembled and re-erected at a new location. This is a significant advantage over welded or poured-concrete structures.
Q: How long do bolt together metal buildings last?
Most manufacturers warranty their steel panels for 25–40 years against perforation from rust. The structural frame, when properly maintained, can last 50 years or more.
Q: Can one person assemble a metal building kit alone?
A very small kit (10×12 ft or similar) may be manageable solo, but most kits require at least two people for safety and practicality. Three to four people is the practical minimum for a 30×40 ft structure.
Q: Are bolt together metal buildings energy efficient?
The steel shell alone has minimal insulation value. Adding fiberglass batt insulation between the girts, or a spray foam liner, brings the building to code-compliant energy performance for conditioned spaces.
Q: What is the difference between a “kit building” and a “pre-engineered building”?
These terms overlap significantly. Pre-engineered buildings are designed by a licensed engineer for specific load conditions; most quality bolt together kits are pre-engineered. Cheaper “kit buildings” may not include stamped engineering drawings, which can create permitting problems.
Q: Can I customise the colour and panel profile of my kit?
Yes. Most manufacturers offer multiple panel profiles (corrugated, R-panel, standing seam) and a range of Kynar or SMP paint colours. Customisation is typically locked in at the order stage.
Q: Is a bolt together metal building cheaper than a wood-frame building of the same size?
For larger structures (over 1,000 sq ft), steel kits are generally cost-competitive with or cheaper than wood framing, especially when accounting for lower long-term maintenance costs. For small sheds, wood may still be cheaper upfront.
Conclusion: Is a Bolt Together Metal Building Right for You?
A bolt together metal building is one of the most practical, cost-effective ways to add durable covered space — whether for a personal workshop, agricultural storage, or a light commercial facility. The engineering is done before the steel leaves the factory, which means a motivated owner-builder with basic tools and a level foundation can erect a structure that will stand for decades.
Actionable next steps:
- Define your use case and required floor area before contacting any supplier.
- Call your local building department to confirm zoning, permit requirements, and any load specifications (wind, snow) for your site.
- Get quotes from at least three manufacturers and compare what is included — freight, anchor bolts, trim, and engineering stamps vary widely.
- Plan your foundation first. The slab or footing must be complete and cured before the kit arrives.
- Read the full erection manual before assembly day. Experienced builders consistently say that understanding the sequence in advance cuts build time in half.
Steel is unforgiving of sloppy foundations and skipped fasteners, but it rewards careful preparation with a structure that outlasts almost everything else you can build at the same price point.
References
- Metal Building Manufacturers Association (MBMA). Metal Building Systems Manual. 2021. https://www.mbma.com
- American Institute of Steel Construction (AISC). Steel Construction Manual, 16th Edition. 2022. https://www.aisc.org
- International Building Code (IBC). 2021 International Building Code. International Code Council, 2020. https://www.iccsafe.org
- RS Means. Building Construction Cost Data. Gordian, 2023. https://www.gordian.com/rsmeans
