Last updated: May 19, 2026
Quick Answer: To design a metal building interior, start by defining the building’s purpose, then plan your floor layout, address insulation and moisture control, frame interior walls, and select finishes that work with the metal structure. The process differs from conventional construction mainly because you’re working with wide-span steel frames, exposed structural elements, and specific thermal and acoustic challenges that require deliberate planning from the start.
Key Takeaways
- Define the use case first. A workshop, barndominium, commercial space, and event venue all require different interior approaches from the ground up.
- Insulation is non-negotiable. Metal conducts heat and cold aggressively; without proper insulation, the interior will be uncomfortable and expensive to condition year-round.
- Moisture and condensation control must be addressed before any interior finishing begins, or you’ll face rust, mold, and structural damage later.
- Interior framing (usually wood stud or light-gauge steel) is typically added inside the metal shell to create wall cavities for insulation, utilities, and drywall.
- Lighting design makes or breaks a metal building interior; the large open spans create both an opportunity and a challenge for ambient and task lighting.
- Flooring choices should account for the concrete slab’s moisture vapor transmission before you commit to hardwood, LVP, or tile.
- Acoustic treatment is often overlooked; bare metal amplifies sound significantly, so plan for absorptive materials early.
- Open-plan layouts work naturally with steel’s wide spans, but zoning with partial walls, mezzanines, or furniture groupings creates livable, functional spaces.
- Budget realistically. Interior finishing typically represents 40–60% of total metal building project costs, depending on finish level.
- Work with the structure, not against it. Exposed beams, corrugated metal accents, and industrial-style fixtures can become design assets rather than problems to hide.
Why Metal Building Interiors Require a Different Design Approach
Metal buildings give you a structural shell that most conventional builders don’t have: wide, column-free spans, predictable framing geometry, and a durable exterior envelope. But that shell also creates specific interior challenges that don’t exist in wood-frame construction.
The core differences:
- Thermal bridging: Steel conducts heat roughly 400 times more efficiently than wood (per U.S. Department of Energy guidance on building envelope performance). Without a thermal break, you’ll lose conditioned air rapidly through the walls and roof.
- Condensation risk: When warm interior air hits cold metal surfaces, moisture condenses. Left unmanaged, this causes rust, mold, and insulation failure.
- Acoustics: A bare metal shell acts like a drum. Rain, HVAC noise, and interior sounds all amplify and echo.
- Attachment points: You can’t simply nail into a steel column the way you would a wood stud. Interior framing, cabinetry, and fixtures all need planned attachment strategies.
Understanding these four factors shapes every decision you’ll make when learning how to design a metal building interior.
How to Design a Metal Building Interior: Starting With Purpose and Layout
The single most important step is defining exactly how the space will be used before any framing or finishing begins. A barndominium (combined barn and living space) has completely different layout requirements than a commercial warehouse, a CrossFit gym, or a retail showroom.
Step 1: Define Your Use Zones
Break the interior into functional zones. For a residential metal building (barndominium), common zones include:
- Living and dining areas
- Kitchen
- Bedrooms and bathrooms
- Utility/mechanical room
- Garage or workshop bay
For commercial or mixed-use buildings, zones might include:
- Customer-facing retail or reception
- Back-of-house storage or production
- Office or administrative space
- Loading or staging areas
Decision rule: If your building is wider than 60 feet, consider a central corridor or spine layout to give all zones natural access without crossing through other spaces. Narrower buildings (40 feet and under) often work well with a simple side-to-side zone split.

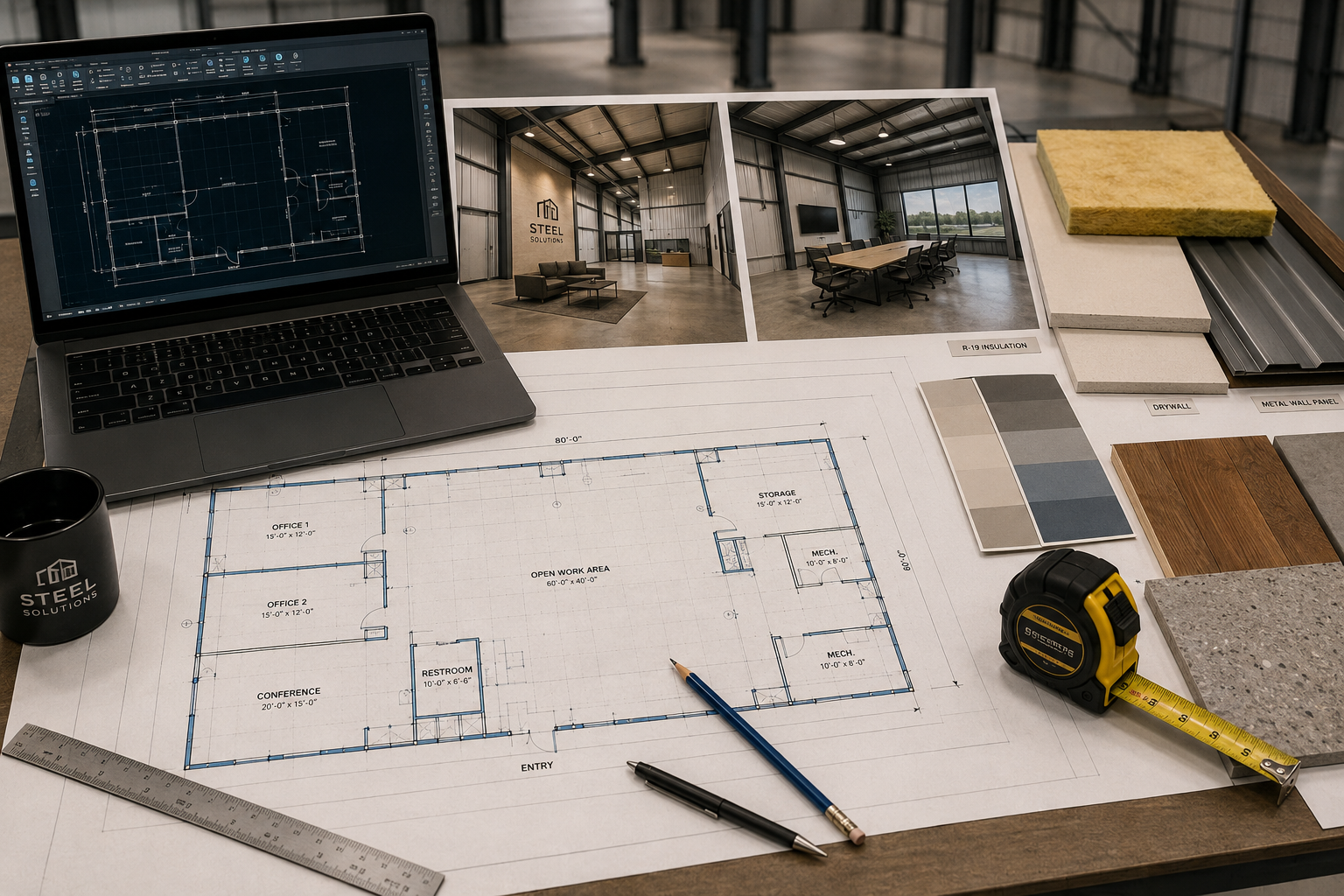

Step 2: Draw a Scaled Floor Plan
You don’t need to be an architect, but you do need accurate dimensions. Measure the interior clear span (the usable width between interior column faces), the eave height, and the ridge height. Then sketch your zones to scale on graph paper or use a free tool like RoomSketcher or SketchUp’s free tier.
Common mistake: People forget to account for the interior framing depth. Adding 2×4 or 2×6 stud walls with insulation and drywall on all four sides of a 40×60 building can reduce usable interior width by 12–18 inches per side. That’s up to 3 feet of total width loss, which matters when planning room dimensions.
Step 3: Locate Utilities Early
Electrical panels, plumbing rough-in, HVAC equipment, and data/communication lines all need to be planned before interior walls go up. In a metal building, the slab is often poured before the shell is erected, so plumbing stub-outs must be placed during slab work. Missing this step means jackhammering concrete later.
Insulation: The Foundation of a Comfortable Metal Building Interior
Proper insulation is the single biggest factor in whether a metal building interior is livable and energy-efficient. Skipping or under-specifying insulation leads to condensation, high utility bills, and uncomfortable temperature swings.
The Four Main Insulation Options
| Insulation Type | R-Value per Inch | Best For | Key Consideration |
|---|---|---|---|
| Spray foam (closed-cell) | ~6–7 | Walls, roof underside | Highest cost; best vapor barrier |
| Rigid foam board | ~3.8–6.5 | Walls, under slab | Requires careful sealing at joints |
| Fiberglass batt | ~2.2–3.8 | Wall cavities between studs | Needs vapor barrier; can sag over time |
| Reflective/radiant barrier | Varies | Roof, hot climates | Works best combined with other insulation |
For most metal building projects in mixed or cold climates, closed-cell spray foam applied directly to the interior of the metal panels is the most reliable solution. It creates a seamless vapor barrier, eliminates condensation at the metal surface, and adds structural rigidity. The trade-off is cost: closed-cell spray foam typically runs $1.50–$3.50 per square foot of coverage (cost estimate based on 2025–2026 contractor pricing ranges; your local market will vary).
Rule: “In a metal building, insulation isn’t just about comfort. It’s about protecting the structure itself from moisture damage.”
Vapor Barrier Placement
In cold climates, the vapor barrier goes on the warm side of the insulation (interior side). In hot, humid climates, it goes on the exterior side. Getting this wrong causes moisture to accumulate inside the wall cavity. If you’re unsure, consult a local building scientist or HVAC engineer — the answer depends on your climate zone.
Interior Framing: Building Walls Inside a Metal Shell
Interior framing creates the wall cavities you need for insulation, utilities, and finished surfaces. Most metal building interiors use either wood stud framing or light-gauge steel stud framing installed inside the metal shell.
Wood vs. Light-Gauge Steel Studs
Choose wood studs (2×4 or 2×6) if:
- You’re building a residential space where attaching cabinets, shelving, and fixtures is a priority
- Local lumber costs are competitive
- Your crew has more experience with wood framing
Choose light-gauge steel studs if:
- The building is primarily commercial
- Fire resistance ratings are required by code
- You want to match the metal building’s structural material throughout
Attaching Interior Framing to the Metal Shell
Steel columns and girts (the horizontal structural members) don’t accept nails. You have two main options:
- Powder-actuated fasteners: A tool like a Hilti or Ramset drives hardened pins directly into steel. Fast and effective for attaching wood plates to steel girts.
- Self-drilling screws (Tek screws): Used for steel-to-steel connections, such as attaching light-gauge track to structural steel.
Do not rely on construction adhesive alone to attach framing to metal surfaces. Adhesive can fail with temperature cycling, and it provides no structural connection.
Flooring Options for Metal Building Interiors
The right flooring for a metal building interior depends on the slab’s moisture vapor emission rate, the intended use, and the finish level you want. Most metal buildings sit on a concrete slab, which is your starting point for any flooring decision.
Testing Before You Install
Before installing any flooring over concrete, perform a calcium chloride test or relative humidity probe test to measure moisture vapor transmission. The Flooring Contractors Association (FCICA) recommends testing at a minimum of one test per 1,000 square feet. High moisture vapor emission will cause wood flooring to buckle, LVP to delaminate, and adhesive to fail.
Flooring by Use Case
- Workshop or garage bays: Sealed or epoxy-coated concrete is the most practical and durable choice. Epoxy coatings resist oil, chemicals, and abrasion.
- Residential living areas: Luxury vinyl plank (LVP) is the most popular choice in 2026 for barndominium interiors. It handles minor moisture vapor better than hardwood, installs quickly, and comes in realistic wood and stone looks.
- Commercial retail or office: Polished concrete, LVP, or commercial-grade carpet tile all work well. Polished concrete is low-maintenance and suits the industrial aesthetic many metal building owners prefer.
- Bathrooms and utility rooms: Porcelain tile over a properly prepared slab is the standard choice.
Common mistake: Installing solid hardwood directly over a concrete slab in a metal building without a moisture barrier and acclimation period. Even with proper testing, solid hardwood is a higher-risk choice in metal buildings due to the temperature swings that occur when the building isn’t occupied.
Lighting Design for Metal Building Interiors
Lighting in a metal building interior has to work harder than in a conventional space because the large volumes, high ceilings, and reflective surfaces create both glare and dark zones. A layered lighting plan solves this.
The Three-Layer Approach
- Ambient lighting: High-bay LED fixtures are the workhorse for metal buildings with eave heights above 14 feet. Look for fixtures with a Color Rendering Index (CRI) of 80 or higher for spaces where color accuracy matters (retail, workshops, living areas).
- Task lighting: Under-cabinet lights in kitchens, pendant lights over workbenches, and adjustable track lighting over display areas.
- Accent lighting: LED strip lights along exposed beams, recessed cans in dropped ceiling sections, and wall sconces in residential zones.
Natural light strategy: Metal buildings often have limited window openings by default. Adding translucent roof panels (polycarbonate skylights) or clerestory windows along the ridge can dramatically reduce daytime artificial lighting needs. This is one of the most cost-effective upgrades you can make during the design phase.
Acoustic Treatment in Metal Building Interiors
Bare metal amplifies sound, so acoustic treatment needs to be part of your interior design plan from the beginning, not an afterthought. This applies to both sound transmission between zones and overall reverberation within a space.
Practical Acoustic Solutions
- Insulation itself helps significantly. Spray foam and fiberglass batts both absorb sound in addition to controlling temperature.
- Dropped ceilings with acoustic tile are one of the most effective ways to reduce reverberation in office or retail sections of a metal building.
- Soft furnishings (rugs, upholstered furniture, curtains) absorb sound in residential zones.
- Acoustic panels mounted on walls work well in conference rooms, recording studios, or any space where speech intelligibility matters.
For workshops or industrial bays where noise is expected, focus on sound isolation between the noisy zone and adjacent quiet zones using double-stud walls with insulation in the cavity.
How to Design a Metal Building Interior That Feels Finished and Inviting
The biggest design challenge in a metal building interior is making a large, industrial shell feel warm, finished, and intentional rather than like an afterthought. The good news is that the industrial aesthetic is genuinely popular in 2026, and working with the structure’s character is easier than fighting it.
Design Strategies That Work
Expose what’s beautiful. Painted steel beams, corrugated metal accent walls, and polished concrete floors are all design assets when treated intentionally. Many barndominium and loft-style interiors deliberately leave structural elements visible and paint them in contrasting colors (matte black beams against white walls, for example).
Use ceiling height strategically. A 16-foot eave height is a liability if the whole space feels like an empty hangar. Drop sections of the ceiling in living or office areas to create intimacy, and leave the full height in open zones like kitchens, living rooms, or reception areas where the volume feels dramatic rather than cold.
Warm up with materials. Wood, brick veneer, shiplap, and textured plaster all contrast well with metal and steel. A shiplap accent wall or a brick-faced fireplace surround does a lot of work to make a metal building interior feel residential.
Zone with lighting and furniture. In open-plan spaces, area rugs, pendant light clusters, and furniture arrangement define zones without requiring full-height walls. This preserves the open feel while creating functional, human-scale areas.
Color selection matters more here. Light, warm neutrals (warm whites, greiges, soft taupes) make large metal building interiors feel less industrial. Cool greys and stark whites can amplify the warehouse feeling if you’re not careful.
Common Mistakes to Avoid When Designing a Metal Building Interior
Even experienced builders make these errors on metal building interior projects:
- Skipping a condensation control plan. This is the most expensive mistake to fix after the fact.
- Underestimating HVAC load. Metal buildings with high ceilings and large volumes need properly sized HVAC systems. A residential HVAC contractor unfamiliar with metal buildings may significantly undersize the equipment.
- Not planning for interior attachment points. If you want to hang heavy shelving, mount a TV, or attach kitchen cabinets, you need blocking or backing in the walls during framing. Adding it later means opening up finished walls.
- Ignoring code requirements. Metal buildings used for residential occupancy must meet the same building codes as conventional homes in most jurisdictions. This includes egress windows, ceiling heights, insulation R-values, and fire separation requirements.
- Choosing finishes before the structure is complete. Temperature and humidity in an unfinished metal building are extreme. Flooring, cabinetry, and millwork should not be installed until the building is fully enclosed, insulated, and climate-controlled.
FAQ: How to Design a Metal Building Interior
Q: Can I finish a metal building interior to look like a regular home?
Yes. With proper insulation, interior framing, drywall, and finish materials, a metal building interior can be indistinguishable from conventional home construction. Barndominiums are a well-established example of this.
Q: How much does it cost to finish a metal building interior?
Interior finishing costs vary widely based on finish level and region. As a rough estimate for 2026, budget $40–$80 per square foot for a mid-grade residential finish (drywall, basic flooring, standard fixtures). High-end finishes can exceed $120 per square foot. These are estimates; get local contractor quotes for accurate numbers.
Q: Do I need a vapor barrier in a metal building?
Yes, in virtually all climates. The specific placement (interior vs. exterior side of insulation) depends on your climate zone. Consult your local building code or an HVAC engineer for the correct placement.
Q: What is the best insulation for a metal building interior?
Closed-cell spray foam is generally considered the most effective option because it creates a seamless vapor barrier and eliminates condensation at the metal surface. Rigid foam board is a cost-effective alternative for walls when properly installed and sealed.
Q: Can I add plumbing to a metal building?
Yes. Plumbing in a metal building works the same as in any other structure. The main consideration is that supply and drain lines should be planned before the slab is poured, since concrete cutting is expensive and disruptive.
Q: How do I handle the echo and noise in a metal building?
Insulation, dropped ceilings with acoustic tile, soft furnishings, and acoustic panels all reduce reverberation. Addressing acoustics during the design phase (before walls are closed) is far more cost-effective than retrofitting solutions later.
Q: What ceiling height is best for a metal building interior?
For residential use, a finished ceiling height of 9–10 feet feels comfortable and normal. For commercial or mixed-use spaces, 12–14 feet is common. If your eave height is 16 feet or more, consider dropping the ceiling in intimate zones and leaving the full height in open areas.
Q: Do metal buildings require special electrical wiring?
The electrical wiring itself is standard, but all metal surfaces that could become energized must be properly grounded per the National Electrical Code (NEC). This is standard practice for any licensed electrician working on metal buildings.
Q: How do I attach drywall in a metal building interior?
Drywall attaches to interior wood or steel stud framing, not directly to the metal shell. The interior framing creates the surface for drywall attachment just as it would in any framed building.
Q: Is a building permit required to finish a metal building interior?
In most jurisdictions, yes. Any work involving electrical, plumbing, HVAC, or structural changes requires permits and inspections. Check with your local building department before starting work.
Conclusion: Your Next Steps for Designing a Metal Building Interior
Learning how to design a metal building interior is genuinely achievable with the right sequence of decisions. The process isn’t more complicated than conventional construction — it’s just different, and the differences are predictable once you know what they are.
Here’s a practical action plan to move forward:
- Define your use case and draw a scaled floor plan before spending money on materials or contractors.
- Hire a local building inspector or architect for a code review early, especially if the building will be used for residential occupancy.
- Get insulation and moisture control right first. Everything else depends on it.
- Plan utilities (electrical, plumbing, HVAC) before framing so you don’t have to undo finished work.
- Choose finishes that work with the industrial character of the space rather than fighting it — your budget will go further and the result will feel more intentional.
- Get at least three contractor bids for each major phase (framing, insulation, mechanical, finishing) and ask specifically about their metal building experience.
The best metal building interiors I’ve seen share one quality: the owners made deliberate decisions about the space from the beginning rather than improvising as they went. Start with a clear plan, address the technical fundamentals (insulation, moisture, HVAC), and then let the design follow from there.
References
- U.S. Department of Energy, Building Technologies Office. Thermal Bridging in Metal Buildings. energy.gov. (2021)
- Flooring Contractors Association (FCICA). Moisture Testing Guidelines for Concrete Substrates. fcica.com. (2020)
- National Electrical Code (NEC), NFPA 70. Article 250: Grounding and Bonding. nfpa.org. (2023)
- Steel Construction Manual, American Institute of Steel Construction (AISC). aisc.org. (2022)
- U.S. Department of Energy, ENERGY STAR Program. Insulation Fact Sheet. energystar.gov. (2022)
