Quick Answer
A 40×60 metal building gives you 2,400 square feet of column-free interior space, making it one of the most popular steel building sizes for workshops, garages, barns, and small commercial spaces. Standard 40×60 metal building plans include engineered drawings for the structural frame, roofing, wall panels, doors, and windows, and can be customized for your local wind, snow, and seismic codes. Total costs typically range from $35,000 to $90,000+ depending on location, finishes, and site work, based on general industry pricing estimates as of 2026.
Key Takeaways
- 2,400 sq ft of usable space makes the 40×60 footprint ideal for workshops, agricultural storage, small warehouses, and hobby garages
- Engineered plans are non-negotiable — most counties require stamped drawings from a licensed engineer before issuing a building permit
- Standard roof pitches for 40×60 metal buildings range from 1:12 (low slope) to 4:12, with higher pitches adding cost but improving drainage and ceiling height
- Lead times from steel building manufacturers typically run 6 to 14 weeks in 2026, so order early if you have a seasonal deadline
- Site preparation (grading, concrete slab, utilities) often costs as much as the building kit itself — budget accordingly
- Customize before you order: door placement, insulation packages, and interior partitions are far cheaper to plan upfront than to modify after fabrication
- DIY assembly is possible but most manufacturers recommend a professional erector crew for safety and warranty compliance
- Local building codes vary significantly — always confirm setback requirements, height limits, and zoning rules before finalizing your 40×60 metal building plans
What Are 40×60 Metal Building Plans and What Do They Include?

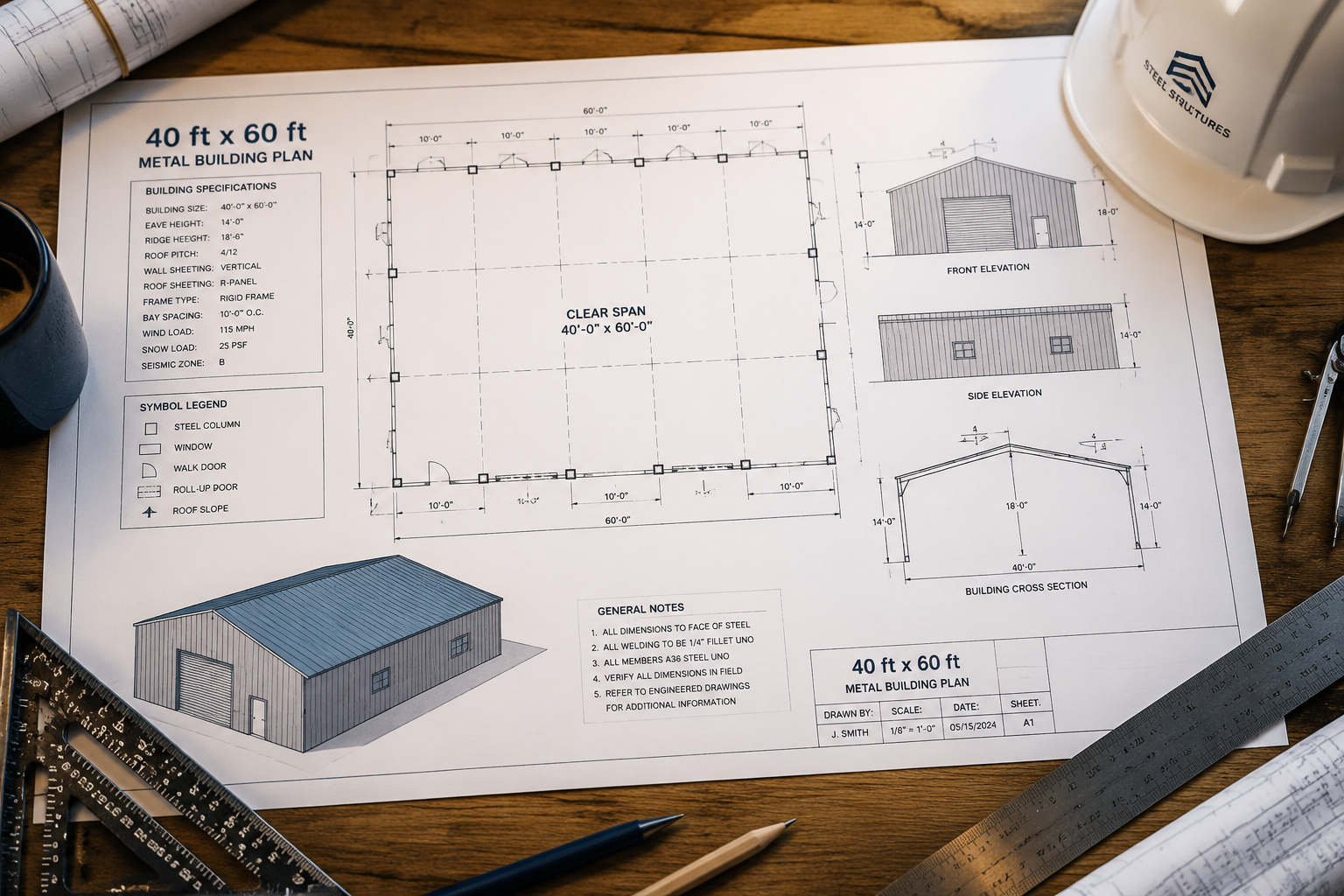

40×60 metal building plans are a set of engineered construction documents that define every structural and architectural element of a 2,400-square-foot steel building. These plans are the legal and technical foundation for your project — without them, you cannot pull a permit or safely erect the structure.
A complete plan package typically includes:
- Foundation plan — slab thickness, anchor bolt layout, and rebar specifications
- Framing elevations — front, rear, and side views showing column heights, girt spacing, and eave height
- Roof framing plan — purlin spacing, ridge details, and roof pitch
- Wall panel layout — locations of all doors, windows, and louvers
- Electrical rough-in diagram (sometimes provided separately by an electrician)
- Engineer’s stamp — a licensed structural engineer’s seal certifying the design meets local code requirements
Pull quote: “The plans aren’t just paperwork — they’re the difference between a building that stands for 40 years and one that fails its first inspection.”
Most reputable steel building suppliers provide engineered plans as part of the kit price. If you’re buying plans separately (for a custom build or owner-supplied steel), expect to pay $1,500 to $5,000 for a licensed engineer to produce stamped drawings, based on typical drafting and engineering firm rates.
Who Is a 40×60 Metal Building Right For?
This building size fits a specific range of users and uses. It’s large enough to be genuinely useful, but small enough to stay within many residential and agricultural zoning allowances.
Best fits:
- Hobby farmers and ranchers needing equipment storage, hay storage, or a livestock shelter
- Contractors and tradespeople wanting a personal shop with room for vehicles and tools
- Small business owners needing light manufacturing, auto repair, or retail storage space
- Homeowners building a large detached garage or a “man cave / she shed” at serious scale
- Equestrian property owners building a small barn with stalls
Not the best fit if:
- You need more than one story (steel rigid-frame buildings can go multi-story, but the engineering complexity and cost jump significantly)
- Your lot has restrictive HOA rules or tight setbacks that make a 40-foot-wide structure impossible
- You want finished office or living space as the primary use — a 40×60 metal building can be finished inside, but it’s not inherently designed for habitation without significant insulation, HVAC, and interior work
How to Read and Use 40×60 Metal Building Plans
Reading a set of steel building plans doesn’t require an engineering degree, but you do need to understand a few key terms before your project starts.
Key terms to know:
| Term | What It Means |
|---|---|
| Eave height | The height from the finished floor to the bottom of the eave strut — typically 10 ft, 12 ft, or 14 ft for a 40×60 |
| Clear span | The full 40-foot width with no interior columns |
| Girt | Horizontal structural members that support wall panels |
| Purlin | Horizontal roof members that support roof panels |
| Rigid frame | The primary structural system — welded steel frames that carry all roof and wall loads |
| Base angle | The trim piece at the bottom of wall panels where they meet the slab |
| Collateral load | Extra weight the roof must carry beyond snow — things like lights, HVAC units, or a ceiling |
Step-by-step: How to use your plans effectively
- Verify the engineer’s stamp matches your state — some states require the engineer to be licensed in that specific state
- Check the design loads — your plans should list the wind speed (mph), ground snow load (psf), and seismic zone they’re designed for
- Confirm anchor bolt layout before pouring concrete — this is the most common and most expensive mistake in metal building construction
- Share plans with your local building department early — ask if they need any supplemental documents before you submit for permit
- Review door and window rough openings — make sure the sizes match the actual doors and windows you’ve ordered
Common mistake: Many buyers assume the plans provided by a manufacturer are automatically code-compliant for their county. Always submit to your local building department for review — codes vary by jurisdiction, and some areas require additional engineering for high-wind or high-snow zones.
What Does a 40×60 Metal Building Cost in 2026?
Cost is the first question almost everyone asks, and the honest answer is: it depends heavily on your location, the building’s configuration, and how much site work your lot requires.
Rough cost breakdown (estimates based on 2026 general market conditions):
| Component | Estimated Cost Range |
|---|---|
| Steel building kit (materials only) | $25,000 – $50,000 |
| Foundation / concrete slab | $8,000 – $20,000 |
| Erection / labor | $8,000 – $18,000 |
| Permits and engineering | $1,500 – $5,000 |
| Insulation | $3,000 – $8,000 |
| Doors, windows, trim | $2,000 – $8,000 |
| Total (estimated) | $47,500 – $109,000+ |
These are general estimates. Prices vary significantly by region, steel market conditions, and site complexity. Always get at least three quotes from licensed contractors and building suppliers before budgeting.
Factors that push costs higher:
- High-wind or high-snow design requirements (heavier steel sections)
- Remote location with difficult site access
- Finished interior with spray foam insulation, drywall, and HVAC
- Multiple large overhead doors or custom window packages
- Engineered concrete piers instead of a standard slab
Factors that keep costs lower:
- Simple rectangular footprint with minimal openings
- Standard eave height (10 or 12 feet)
- Owner-supplied labor for non-structural finish work
- Flat, already-graded site with good drainage
How to Choose the Right 40×60 Metal Building Plans for Your Project
Not all plan sets are created equal. Choosing the right 40×60 metal building plans means matching the design to your specific use case, local codes, and long-term goals.
Step 1: Define your primary use
The interior layout drives almost every other decision. A workshop needs large overhead doors on the end walls. An equipment barn needs wide clear-span access. A small commercial space may need a personnel door, windows for natural light, and a restroom rough-in.
Step 2: Determine your eave height
- 10-foot eave: Enough for most personal garages and storage buildings
- 12-foot eave: Recommended if you’re parking tall trucks, RVs, or farm equipment
- 14-foot eave or taller: Needed for commercial use, large equipment, or if you want a mezzanine level
Step 3: Choose your roof style
- Gable (symmetrical pitch): Most common, easiest to insulate, good for most climates
- Single slope (lean-to): Works well when attaching to an existing structure
- Gambrel: Adds loft storage but costs more and is less common in steel
Step 4: Plan your door placement carefully
Door placement on your 40×60 plans affects traffic flow, natural light, and future expansion. End-wall doors are structurally simpler and cheaper. Sidewall doors require framed openings in the rigid frame, which adds cost.
Step 5: Verify local code requirements before finalizing
Call your county building department and ask:
- What design wind speed is required?
- What is the ground snow load for my address?
- Are there height restrictions or setback requirements?
- Do I need a separate electrical or plumbing permit?
Common Customizations for 40×60 Metal Building Plans
One of the biggest advantages of steel construction is how easily the standard plan can be adapted. Here are the most popular modifications buyers make to their 40×60 metal building plans.
Interior partitions
Adding a framed office, bathroom, or storage room inside the main structure. These are typically wood-framed interior walls built after the steel shell is up. Plan the location before ordering so you can rough in electrical and plumbing in the slab.
Lean-to additions
A lean-to is a single-slope addition that attaches to one sidewall, effectively expanding usable space without a full addition. A 40×60 with a 12×60 lean-to gives you 3,120 square feet total.
Skylights and ridge vents
Translucent roof panels (polycarbonate skylights) add natural light without windows. Ridge vents improve passive ventilation, which matters a lot in a working shop or barn.
Wainscoting
A contrasting lower wall panel (often in a different color or material) that adds visual interest and protects the lower wall from equipment impacts. Purely cosmetic but popular.
Insulation packages
- Vinyl-faced fiberglass batts: Budget option, good for mild climates
- Spray polyurethane foam: Best thermal and vapor performance, higher upfront cost
- Rigid board insulation: Good for walls in combination with other systems
Permitting and Zoning: What to Expect With Your 40×60 Metal Building Plans
Permitting is the step most first-time builders underestimate. It takes longer than expected and requires more documentation than most people plan for.
Typical permit requirements for a 40×60 metal building:
- Completed permit application with property address and parcel number
- Site plan showing the building’s location on the lot with setback dimensions
- Engineered construction drawings (stamped by a licensed engineer)
- Manufacturer’s specifications for the steel framing system
- Concrete foundation plan
- Sometimes: soils report, energy compliance documentation, or drainage plan
Timeline to expect:
Most rural counties process building permits in 2 to 6 weeks. Urban or suburban jurisdictions can take 8 to 16 weeks or longer. Some areas offer over-the-counter permits for agricultural buildings under a certain square footage — call ahead to find out.
Zoning considerations:
- Agricultural zones typically allow large metal buildings with minimal restrictions
- Residential zones often limit accessory structure size, height, and use
- Commercial zones may require fire suppression systems, ADA-compliant restrooms, or specific exterior finishes
- Some counties restrict metal buildings in certain aesthetic overlay districts
Edge case: If your property straddles two zoning districts, the more restrictive rules usually apply to the entire building. Confirm with your local planning department before you design anything.
DIY vs. Hiring a Professional Erector for Your 40×60 Metal Building
This is a real decision with real consequences. A 40×60 steel building is not a weekend project for most people.
DIY assembly pros:
- Saves $8,000 to $18,000 in erection labor (estimated)
- Full control over schedule and quality
- Satisfying for experienced builders
DIY assembly cons:
- Most manufacturers void the warranty if the building isn’t erected by a certified crew
- Working with heavy steel frames requires a crane or telehandler — equipment rental adds cost
- Mistakes in anchor bolt placement or frame erection can be structurally dangerous and expensive to fix
- Some building departments require a licensed contractor to pull the permit
Choose DIY if: You have construction experience, access to equipment, a crew of at least 4 people, and your building department allows owner-builder permits.
Hire a professional if: This is your first metal building, you have a tight timeline, or the manufacturer’s warranty matters to you.
Frequently Asked Questions About 40×60 Metal Building Plans
Q: How long does it take to build a 40×60 metal building from start to finish?
A: From signing a contract with a manufacturer to a completed shell, expect 4 to 6 months total — roughly 6 to 14 weeks for fabrication and delivery, plus 1 to 3 weeks for erection. Permitting and site prep add time on the front end.
Q: Do I need a concrete slab for a 40×60 metal building?
A: A concrete slab is the most common foundation and is required for most commercial and residential uses. Agricultural buildings sometimes use a gravel floor with concrete piers at column locations, but this depends on local code and soil conditions.
Q: Can a 40×60 metal building be used as a home?
A: Yes, but it requires significant additional work — insulation, interior framing, HVAC, plumbing, electrical, and finishes. These “barndominium” conversions are popular but add $40,000 to $100,000+ to the base building cost depending on finish level.
Q: What roof pitch is standard for a 40×60 metal building?
A: The most common roof pitch is 1:12 (a very low slope), which minimizes material cost. A 2:12 or 3:12 pitch is better for areas with moderate to heavy rainfall. Steeper pitches (4:12 and above) add cost but improve attic space and aesthetics.
Q: Are 40×60 metal building plans transferable if I sell my property?
A: Engineered plans are tied to the specific building and location. The physical plans can transfer with the property, but if you want to build the same design on a different lot, you’ll need new engineering to reflect the new location’s design loads.
Q: How much does it cost to insulate a 40×60 metal building?
A: Fiberglass batt insulation (R-13 walls, R-19 roof) typically costs $3,000 to $5,000 installed. Closed-cell spray foam runs $6,000 to $12,000 for a full 40×60 building. Estimates vary significantly by region and contractor.
Q: Can I add solar panels to a 40×60 metal building roof?
A: Yes. Metal roofs are well-suited for solar panel mounting systems. You’ll need to confirm the roof’s collateral load capacity with your engineer before installation — most standard 40×60 plans allow for 3 to 5 psf of additional collateral load, but solar arrays may require a structural review.
Q: What’s the difference between a building kit and full 40×60 metal building plans?
A: A building kit includes the engineered plans plus all fabricated steel components (frames, panels, fasteners). Standalone plans are just the drawings — you source materials separately. Kits are more convenient; standalone plans give more flexibility for custom builds.
Q: How many overhead doors can a 40×60 metal building have?
A: There’s no hard limit, but structural and practical constraints apply. End walls can typically accommodate two 12×12 or 14×14 overhead doors side by side. Sidewall openings require framing modifications to the rigid frame and add cost.
Q: Do metal buildings hold their value?
A: Steel buildings generally depreciate more slowly than wood-frame structures because they’re resistant to rot, pests, and fire. A well-maintained 40×60 metal building adds measurable value to a property, particularly in rural and agricultural markets.
Conclusion: Your Next Steps With 40×60 Metal Building Plans
A 40×60 metal building is one of the most cost-effective ways to add 2,400 square feet of durable, flexible space to a property. But the difference between a smooth project and a frustrating one almost always comes down to planning — specifically, getting the right 40×60 metal building plans before anything else moves forward.
Here’s what to do next:
- Define your use case and must-have features — eave height, door sizes, insulation needs, and any interior partitions
- Call your county building department to confirm zoning rules, setback requirements, and design load requirements for your address
- Get quotes from at least three steel building manufacturers — compare what’s included in the plan package, not just the kit price
- Budget for the full project, including site prep, foundation, erection labor, and permits — not just the steel kit
- Order early — 2026 lead times remain extended for many manufacturers, and a seasonal construction window can disappear quickly
The planning phase feels slow, but it’s where you save money and avoid costly mistakes. A well-executed 40×60 metal building can serve you for 40 or 50 years with minimal maintenance. That’s worth doing right.
