Quick Answer
Storage-focused metal building layouts are floor plan configurations designed specifically to maximize usable cubic footage, streamline material handling, and support long-term operational efficiency inside steel-frame structures. The best layout depends on what you’re storing, how often you access it, and whether you need vehicle access, climate control, or mezzanine levels. Getting the layout right before construction begins saves significant money compared to retrofitting later.
Key Takeaways
- Clear-span framing (no interior columns) is the single most important structural choice for flexible storage layouts.
- Bay width and eave height directly control how much vertical racking you can install and what equipment can move through the building.
- Drive-through configurations reduce forklift travel time and lower accident risk in high-volume storage operations.
- Mezzanine levels can effectively double usable floor space without expanding the building footprint.
- Door placement is the most commonly overlooked element in storage-focused metal building layouts — poor placement creates permanent traffic bottlenecks.
- Zoning by access frequency (hot, warm, cold storage zones) improves pick efficiency and reduces labor costs.
- Insulation and vapor barriers are non-negotiable if you’re storing temperature-sensitive inventory or equipment.
- A 40×60 ft metal building with 16-ft eaves is a common entry-level storage configuration; commercial operations typically start at 60×100 ft or larger.
- Building codes and fire egress requirements vary by state and occupancy classification — always verify before finalizing a layout.
- Pre-engineered steel buildings can be designed with future expansion in mind, which is worth planning for from day one.
What Makes a Metal Building Ideal for Storage?
Steel-frame buildings outperform wood-frame and masonry structures for storage applications because of their strength-to-span ratio. A pre-engineered metal building can achieve clear spans of 300 feet or more without interior support columns, which means you get unobstructed floor space that can be reconfigured as your storage needs change.
Here’s what sets metal buildings apart for storage use:
- Durability: Steel resists pests, rot, and fire better than wood framing.
- Speed of construction: Most pre-engineered kits erect faster than site-built alternatives.
- Scalability: Endwall extensions let you add length without demolishing the original structure.
- Load capacity: Roof and wall systems can be engineered to support heavy snow loads, roof-mounted HVAC, or solar panels without compromising interior space.
- Cost per square foot: For large footprints (5,000+ sq ft), steel typically costs less per square foot than comparable wood or concrete block construction.
Worth noting: Metal buildings aren’t the right choice for every storage scenario. If you need finished interior walls, high-end aesthetics, or a very small footprint (under 400 sq ft), other construction methods may be more practical or cost-effective.
How Do Storage-Focused Metal Building Layouts Differ From General-Purpose Designs?
Storage-focused metal building layouts prioritize cubic footage, material flow, and access over aesthetics or multi-use flexibility. A general-purpose metal building might balance office space, workshop area, and storage equally. A storage-optimized layout makes different trade-offs.
Key differences:
| Feature | General-Purpose Layout | Storage-Focused Layout |
|---|---|---|
| Interior columns | Sometimes acceptable | Avoided whenever possible |
| Eave height | 10–14 ft typical | 16–30 ft for racking |
| Door count/size | Minimal | Multiple, oversized |
| Office space | Often 10–20% of floor | 0–5% or separate structure |
| Lighting | Standard | High-bay, task-specific |
| Floor spec | Standard 4″ slab | 6″+ reinforced for forklifts |
| Ventilation | General | Targeted for stored goods |
Common mistake: Ordering a standard metal building kit and assuming it will work for storage. Standard kits often have eave heights of 10–12 feet, which limits racking to two or three levels. If you know you’ll use pallet racking, specify a minimum 16-foot eave height — and 20+ feet if you plan to use a reach truck or turret truck.
What Are the Core Layout Configurations for Metal Storage Buildings?
There are five primary layout configurations used in storage-focused metal building designs. Each suits a different operational profile.

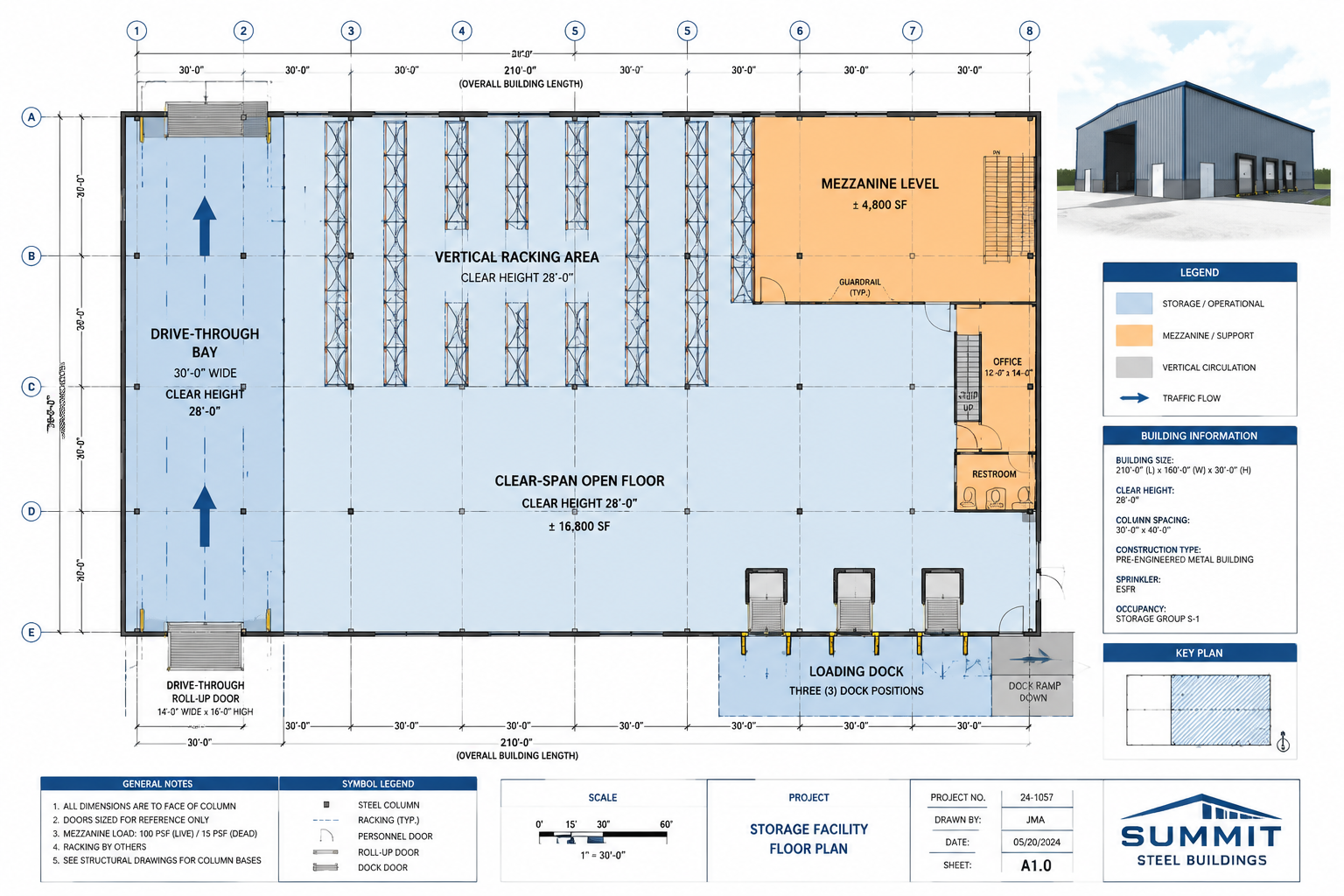

1. Single-Span Clear-Floor Layout
The entire interior is open floor space with no columns. Best for:
- Self-storage facilities with modular unit dividers
- Agricultural equipment storage
- Vehicle storage (RVs, boats, fleet vehicles)
- Flexible warehousing where inventory types change seasonally
Choose this if your storage needs change frequently or you need to move large equipment in and out.
2. Drive-Through (Double-Endwall Door) Layout
Large doors on both endwalls allow vehicles or forklifts to enter one end and exit the other. This eliminates the need to reverse long vehicles and speeds up loading cycles.
Best for:
- Distribution centers with high throughput
- Hay and grain storage
- Contractor equipment yards
3. Racking-Optimized Layout
The building width and column spacing are engineered around a specific racking system. Aisle widths, door locations, and utility runs are all planned to support the racking grid.
Key specs to coordinate:
- Racking depth (typically 42″ or 48″ per side)
- Aisle width (standard reach truck needs 102–144 inches; narrow-aisle turret trucks need 66–72 inches)
- Upright height vs. available clear height under roof purlins
4. Mezzanine-Integrated Layout
A structural steel mezzanine adds a second level for lighter storage, office space, or pick-and-pack operations. The ground floor handles heavy pallet storage; the mezzanine handles smaller SKUs or administrative functions.
Edge case: Mezzanines add significant point loads to the floor slab. If you’re adding a mezzanine, the concrete spec needs to account for column footings before the slab is poured — not after.
5. Multi-Bay Modular Layout
Multiple bays are separated by interior fire walls or partition systems, each serving a different storage function (cold storage, dry goods, hazardous materials). This is common in agricultural co-ops, third-party logistics facilities, and municipal storage buildings.
How Do You Plan Door Placement in a Storage-Focused Metal Building?
Door placement is the most consequential single decision in storage-focused metal building layouts, and it’s the one most often rushed. Poor door placement creates permanent traffic flow problems that no amount of interior reorganization can fix.
Rules for door placement:
- Locate doors based on traffic flow first, aesthetics second. Map out how forklifts, trucks, and pedestrians will move through the space before placing a single door.
- Separate pedestrian and vehicle doors. Mixing foot traffic and forklift lanes is a safety hazard. OSHA guidelines recommend physical separation wherever possible.
- Size overhead doors generously. A 12×14 ft door handles most standard semi-trailers. If you’re storing RVs or agricultural equipment, 14×16 ft or larger may be necessary.
- Add more doors than you think you need. Fire egress codes often require multiple exit points. Adding a door during construction costs a fraction of what it costs to cut through a finished metal wall later.
- Consider dock-height vs. grade-level doors. Dock-height doors (approximately 48 inches above grade) allow direct loading from standard semi-trailers. Grade-level doors require a dock leveler or ramp for trailer access.
“The two things clients most often wish they’d done differently are: added more eave height and moved a door.” — This reflects a pattern I’ve heard consistently from metal building owners and contractors over the years.
What Eave Height and Bay Spacing Should You Specify?
Eave height and bay spacing are the two structural variables that most directly control how useful your storage building will be long-term.
Eave height guidelines by use case:
- Personal/hobby storage (ATVs, tools, seasonal items): 10–12 ft eave
- Single-level pallet racking: 14–16 ft eave
- Double-deep or drive-in racking: 18–24 ft eave
- High-bay automated storage: 30–40 ft eave (requires engineered foundation and specialized racking)
Bay spacing refers to the distance between rigid frames along the building’s length. Standard bay spacing runs 20–25 feet. Wider bay spacing (30+ feet) reduces the number of frames but increases the size (and cost) of each frame. For storage buildings with overhead cranes or very heavy roof loads, tighter bay spacing may be structurally necessary.
A practical example: A 60×120 ft building with 24-ft eaves and 25-ft bay spacing gives you roughly 7,200 sq ft of clear floor area and enough clear height for three-level selective racking with a standard reach truck. That’s a solid baseline for a small regional distribution operation or large agricultural storage facility.
How Should You Zone the Interior of a Storage-Focused Metal Building?
Zoning by access frequency is one of the highest-return improvements you can make to a storage layout. The concept is straightforward: items you access daily should be closest to the primary door; items you access rarely should be farthest away.
Three-zone model:
- Hot zone (near primary door): High-turnover inventory, frequently used equipment, items shipped daily
- Warm zone (mid-building): Medium-turnover inventory, seasonal items accessed monthly
- Cold zone (far end): Long-term storage, archive materials, rarely accessed equipment
Additional zoning considerations:
- Hazardous materials must be stored per local fire code and EPA regulations, typically in a separated, ventilated area with secondary containment.
- Climate-sensitive goods (electronics, pharmaceuticals, food products) need a separately insulated and conditioned zone, not just a general HVAC system.
- Receiving and staging areas should be located immediately inside the loading dock, separate from the main storage floor, so incoming shipments can be inspected and sorted before being put away.
What Are the Best Practices for Storage-Focused Metal Building Layouts?
The best storage-focused metal building layouts share a few consistent characteristics regardless of size or industry. Here’s a practical checklist:
Before you finalize the design:
- Define your maximum forklift or equipment dimensions (height, width, turning radius)
- Determine your racking system type and calculate required aisle widths
- Identify any hazardous materials storage requirements
- Confirm local building codes, zoning, and fire egress requirements
- Decide whether you need dock-height or grade-level access (or both)
- Plan for future expansion — specify an endwall that can be removed cleanly
During the design phase:
- Specify eave height based on racking system, not just general preference
- Locate all utility runs (electrical, compressed air, data) before the slab is poured
- Include LED high-bay lighting in the structural design (roof attachment points, conduit runs)
- Size the floor slab for your heaviest expected load (forklift + maximum pallet weight)
- Add a vapor barrier under the slab if storing moisture-sensitive goods
Common mistakes to avoid:
- Ordering a standard kit without customizing eave height
- Placing doors based on site aesthetics rather than traffic flow
- Forgetting to account for roof purlins when calculating clear height under the roof
- Skipping the mezzanine footing spec until after the slab is poured
- Underestimating the number of electrical circuits needed for lighting and equipment
How Much Does It Cost to Build a Storage-Focused Metal Building?
Costs vary significantly based on size, location, eave height, and finish level. The figures below are general estimates for 2026 and should be verified with local contractors and suppliers, as material prices and labor rates fluctuate.
Rough cost ranges (building kit + erection, excluding foundation and site work):
| Building Size | Eave Height | Estimated Kit + Erection Cost |
|---|---|---|
| 30×40 ft | 12 ft | $18,000–$30,000 |
| 40×60 ft | 14 ft | $30,000–$50,000 |
| 60×100 ft | 16 ft | $60,000–$100,000 |
| 80×150 ft | 20 ft | $120,000–$200,000 |
| 100×200 ft | 24 ft | $220,000–$380,000 |
These are estimates based on general market conditions and do not include foundation, site prep, insulation, doors, electrical, or interior fit-out. Get multiple quotes from certified metal building dealers.
Factors that increase cost:
- Higher eave heights (more steel per frame)
- Crane rail systems
- Insulated wall and roof panels
- Dock levelers and pit construction
- Mezzanine systems
- Fire suppression systems
FAQ: Storage-Focused Metal Building Layouts
Q: What is the minimum eave height for pallet racking in a metal building?
A: For standard selective pallet racking with a counterbalanced forklift, plan for at least 16 feet of clear eave height. This allows three to four pallet levels with safe clearance. Narrow-aisle or high-bay operations need 20–30 feet.
Q: Can I add a mezzanine to an existing metal building?
A: Yes, but you need to verify that the existing floor slab can handle the column point loads. If the slab wasn’t designed for mezzanine footings, you may need to core-drill and install new footings, which adds cost and complexity.
Q: How wide should aisles be in a metal storage building?
A: Standard counterbalanced forklifts need approximately 11–13 feet of aisle width. Reach trucks need 8.5–10 feet. Narrow-aisle turret trucks can operate in 6–7 foot aisles. Choose your equipment first, then design aisles around it.
Q: What floor thickness is recommended for forklift use?
A: A minimum 6-inch reinforced concrete slab is standard for light forklift use. Heavy forklifts (10,000+ lb capacity) or high-density racking may require 7–8 inches with additional rebar or fiber reinforcement. Consult a structural engineer for your specific loads.
Q: Do metal storage buildings need insulation?
A: Not always, but insulation is strongly recommended if you’re storing temperature-sensitive goods, working inside the building, or trying to control condensation. Condensation on uninsulated metal roofs can drip onto stored inventory and cause significant damage.
Q: How do I plan for future expansion in a metal building layout?
A: Design one endwall as a “future expansion wall” — use a standard endwall frame rather than a rigid endwall frame. This makes it much easier and less expensive to extend the building length later without major structural modifications.
Q: What’s the difference between a clear-span and multi-span metal building?
A: A clear-span building has no interior columns; the roof load is carried entirely by the exterior walls and rigid frames. A multi-span building uses interior columns to support the roof, which reduces frame cost but creates obstructions on the floor. For storage, clear-span is almost always preferred.
Q: Can I use a metal building for cold storage?
A: Yes, but it requires a specialized insulation system (typically spray foam or insulated metal panels), a vapor barrier, and a refrigeration system sized for the space. Standard metal building insulation is not sufficient for refrigerated or frozen storage.
Q: How long does it take to erect a pre-engineered metal storage building?
A: A 60×100 ft building typically takes a 4–6 person crew 5–10 days to erect the steel structure. Total project time from order to occupancy, including foundation, erection, and finishing, is typically 3–6 months depending on permitting and site conditions.
Q: What permits do I need for a metal storage building?
A: Most jurisdictions require a building permit, and many require a site plan review, zoning approval, and inspections at foundation, framing, and final stages. Requirements vary significantly by state, county, and municipality. Check with your local building department before ordering materials.
Conclusion: Actionable Next Steps for Planning Your Storage Building
Getting storage-focused metal building layouts right is largely a planning problem, not a construction problem. The decisions you make on paper — eave height, door placement, floor spec, zoning — determine 80% of how well the building will actually work for the next 20 to 30 years.
Here’s how to move forward:
- Define your storage requirements in detail before contacting any manufacturer or contractor. Know your inventory types, maximum pallet or equipment dimensions, and expected throughput.
- Get at least three quotes from certified pre-engineered metal building dealers. Specify the same eave height, bay spacing, and door configuration in each quote so you’re comparing apples to apples.
- Hire a local engineer or experienced contractor to review the layout before you finalize it. An hour of consulting time is far cheaper than a design mistake discovered during construction.
- Plan for expansion from day one. Even if you don’t need more space now, designing one endwall for future extension costs almost nothing extra and can save tens of thousands of dollars later.
- Don’t skip the floor spec. Talk to a structural engineer about your forklift loads and racking point loads before the slab is poured. This is the one element that truly cannot be fixed after the fact.
A well-planned storage-focused metal building layout isn’t just a place to put things — it’s an operational asset that reduces labor costs, improves inventory accuracy, and scales with your business. The time you invest in planning now pays back every single day the building is in use.
